DISC FRANA ATE 24.0109-0124.1

DISC FRANA ATE - 24.0109-0124.1

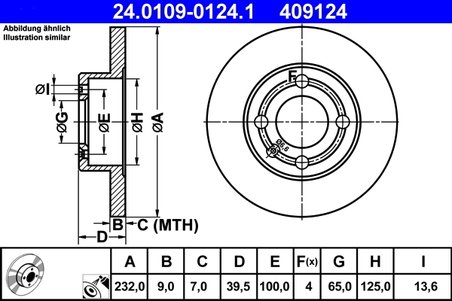

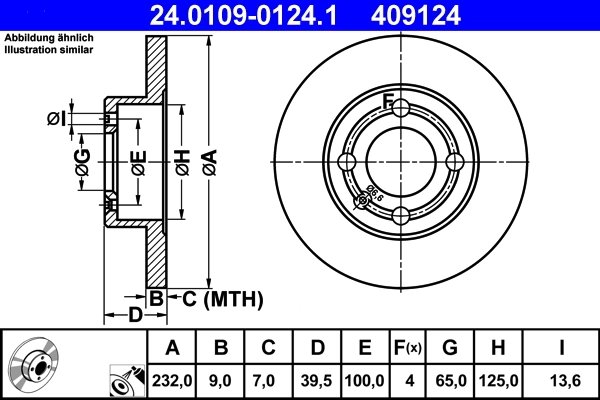

Caracteristici:

• Aprobare: E1 90R-02C0165/0925
• Inaltime [mm]: 39,5
• Diametrul orificiului [mm]: 13,6
• Tip disc frana: plin
• Grosime disc frana [mm]: 9,0
• Grosime minima [mm]: 7,0
• Diametru interior [mm]: 125,0
• Diametru exterior [mm]: 232,0
• Numar gauri: 4
• Diametru de centrare [mm]: 65,0
• Asezare gauri O [mm]: 100,0
• Suprafata: acoperit (cu un strat protector)

Masini compatibile:

SEAT
• IBIZA II (6K1) (1993-2002)
• CORDOBA (6K1, 6K2) (1993-2002)
• CORDOBA Vario (6K5) (1997-2002)
• AROSA (6H1) (2000-2004)
• CORDOBA VARIO caroserie inchisa/combi (6K5) (2000-2002)

VW
• POLO III (6N1) (1996-1999)
• LUPO I (6X1, 6E1) (1999-2005)
• POLO Variant (6V5) (1998-2001)
• POLO III CLASSIC (6V2) (1998-2002)
• POLO (6N2) (1999-2001)

Coduri echivalente:
BARUM: BAR09124
BENDIX: 562171B
BOSCH: 0986478492, 0986479C67
BREMBO: 08.7165.20, 08.7165.21, 08.9349.10
CAR: 142.756
CIFAM: 800-528
DELPHI: BG3505
FEBI BILSTEIN: 22876
FERODO: DDF1233, DDF1233-1
FTE: BS5043
GALFER: B1.G209-0124.1, G2109124
GRAF: DF29528
HELLA: 8DD355106-671, 8DD355106-681
HELLA PAGID: 8DD355106-671, 8DD355106-681
JURID: 562171J
METELLI: 23-0528, 23-0530
MGA: D1390
MINTEX: MDC1470
NK: 204771
PAGID: 50263, 50263PRO
PEX: 14.0641
PILENGA: 5871
QUINTON HAZELL: 6616.00
REMSA: 6616.00
ROADHOUSE: 6616.00
ROULUNDS BRAKING: D2390
SEAT: 6N0615601A, 6N0615601B
SEBRO: 7077
TEXTAR: 92098200, 92098203, 98200098201
TRW: DF4062
VAG: 6N0615601A, 6N0615601B
VALEO: 186729
ZIMMERMANN: 600.3217.00, 600.3217.50
