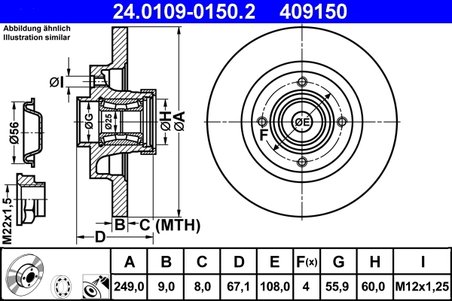

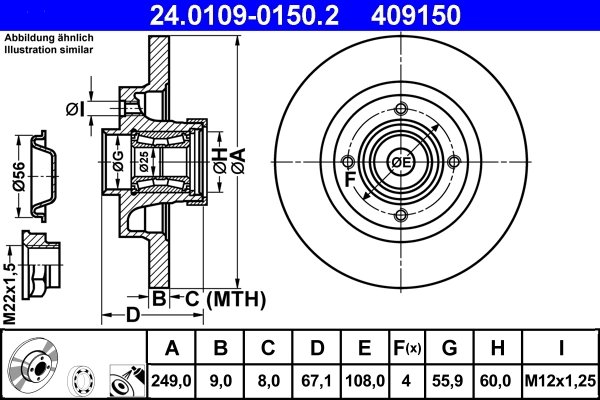

DISC FRANA ATE 24.0109-0150.2

DISC FRANA ATE - 24.0109-0150.2

Caracteristici:

• Aprobare: E1 90R-02C0444/2505
• Inaltime [mm]: 67,1
• Tip disc frana: plin
• Grosime disc frana [mm]: 9,0
• Dimensiune filet: M12x1,25
• Grosime minima [mm]: 7,0
• Diametru interior [mm]: 60,0
• Diametru exterior [mm]: 249,0
• Numar gauri: 4
• Diametru de centrare [mm]: 55,9
• Asezare gauri O [mm]: 108,0
• Suprafata: acoperit (cu un strat protector)
• Dimanetru suport [mm]: 25
• Articol completare/Info suplimentar 2: cu senzor ABS

Masini compatibile:

PEUGEOT
• 307 (3A/C) (2000-2012)
• 307 limuzina (2006-2012)
• 307 SW (3H) (2002-2009)
• 307 CC (3B) (2003-2009)
• 307 Break (3E) (2002-2009)
• 307 SW caroserie inchisa/combi (3E_, 3H_) (2002-2009)

CITROEN
• C4 I (LC_) (2004-2011)
• C4 cupe (LA_) (2004-2011)
• C4 I limuzina (2006-2014)
• C4 I Caseta/ Hatchback (LR_) (2005-2010)

Coduri echivalente:
BENDIX: 562373B
BOSCH: 0986479219, 0986479279
BRECO: BY7679
BREMBO: 08.9512.17
CAR: 142.1084
CIFAM: 800-827
CITROEN: 4246Z9, 424934
DELPHI: BG3962, BG9021RS
FEBI BILSTEIN: 27201
FERODO: DDF1523, DDF1523-1, DDF1561
FTE: BS5425L
GALFER: B1.G209-0150.2, G2109150
GRAF: DF29827
HELLA: 8DD355111-331
HELLA PAGID: 8DD355111-331
JURID: 562373J
LPR: C1005PCA
METELLI: 23-0827
MINTEX: MDC1860, MDC2121
NK: 201939, 201947
PAGID: 54333
PEUGEOT: 4246Z9
PEX: 14.0830
PILENGA: 5177
QUINTON HAZELL: BDC5425, BSF5425
SKF: VKBD1011
TEXTAR: 92133300, 92133303, 98200133301
TRW: DF4452, DF4452BS
VALEO: 186899, 197307, 297899
ZIMMERMANN: 180.3022.00
sbs: 1815201939, 1815201947
