DISC FRANA ATE 24.0109-0171.2

DISC FRANA ATE - 24.0109-0171.2

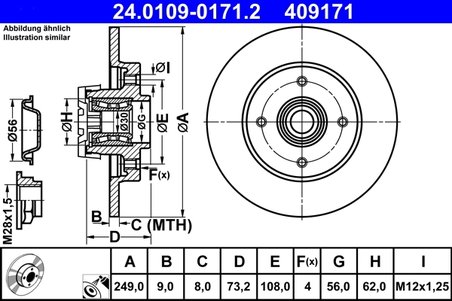

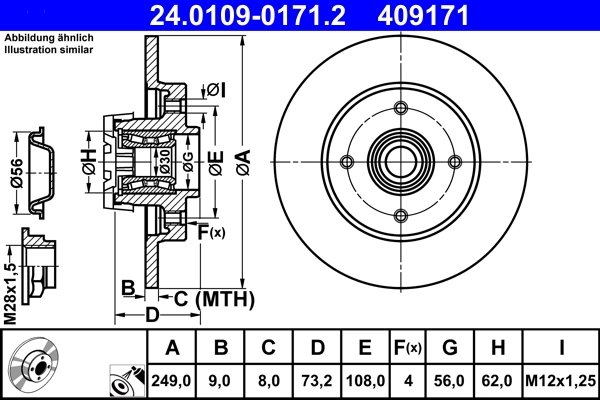

Caracteristici:

• Aprobare: E1 90R-02C0444/2505
• Inaltime [mm]: 73,2
• Tip disc frana: plin
• Grosime disc frana [mm]: 9,0
• Dimensiune filet: M12x1,25
• Grosime minima [mm]: 8,0
• Diametru interior [mm]: 62,0
• Diametru exterior [mm]: 249,0
• Numar gauri: 4
• Diametru de centrare [mm]: 56,0
• Asezare gauri O [mm]: 108,0
• Suprafata: acoperit (cu un strat protector)
• Dimanetru suport [mm]: 30
• Articol completare/Info suplimentar 2: cu senzor ABS

Masini compatibile:

CITROEN
• C4 II (NC_) (2009-2018)
• DS4 (NX_) (2011-2015)
• C4 II limuzina (NC_) (2013-2018)
• C4 II Caseta/ Hatchback (NC_) (2009-2020)

PEUGEOT
• 308 I (4A_, 4C_) (2007-2015)
• 308 SW I (4E_, 4H_) (2007-2014)
• 308 CC (4B_) (2009-2014)
• 308 SW I caroserie inchisa/combi (4E_) (2008-2012)

DS
• DS 4 / DS 4 CROSSBACK (NX_) (2015-2018)

Coduri echivalente:
AP: 14987Y
BENDIX: 562450BC
BOSCH: 0986479400
BRECO: BY7778
BREMBO: 08.A858.17
CAR: 142.1347
CIFAM: 800-1394
CITROEN: 424965, 424966
DELPHI: BG9116RS
FERODO: DDF1695, DDF1696, DDF1696-1
FTE: BS7206LS
GALFER: B1.G209-0171.2, G2109171
HELLA: 8DD355116-081
HELLA PAGID: 8DD355116-081
JURID: 562450JC
LPR: P1011PRCA
METELLI: 23-1394
MINTEX: MDC2031
NK: 1815313738, 313738
PEUGEOT: 424965, 424966
PILENGA: 5231
QUINTON HAZELL: BDC5597
REMSA: 61060.00
TEXTAR: 92194100, 92194103
TRW: DF6042BS
VALEO: 197303, 197449, 197450, 297303
ZIMMERMANN: 440.3121.00
