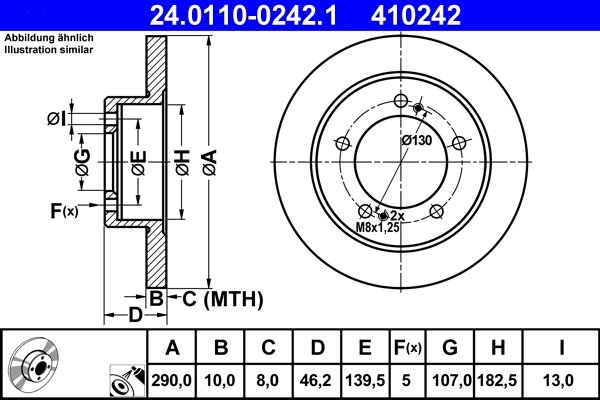

DISC FRANA ATE 24.0110-0242.1

DISC FRANA ATE - 24.0110-0242.1

Caracteristici:

• Aprobare: E1 90R-02C0165/0516
• Inaltime [mm]: 46,2
• Diametrul orificiului [mm]: 13,0
• Tip disc frana: plin
• Grosime disc frana [mm]: 10,0
• Grosime minima [mm]: 8,0
• Diametru interior [mm]: 182,5
• Diametru exterior [mm]: 290,0
• Numar gauri: 5
• Diametru de centrare [mm]: 107,0
• Asezare gauri O [mm]: 139,5
• Suprafata: acoperit (cu un strat protector)

Masini compatibile:

SUZUKI
• VITARA Cabrio (ET, TA) (1988-1999)
• VITARA (ET, TA, TD) (1988-1998)
• X-90 (EL) (1995-1997)
• JIMNY autoturism de teren, inchis (SN) (1998-2019)
• SAMURAI autoturism de teren, inchis (SJ_) (1998-2004)
• VITARA (ET) (2003-2005)
• VITARA Cabrio (ET) (2002-2005)
• SAMURAI autoturism de teren, deschis (SJ_) (2000-2004)
• JIMNY autoturism de teren, deschis (SN) (1998-2009)

Coduri echivalente:
BENDIX: 561505B
BOSCH: 0986478539
BRADI: 1.4808.1.4
BREMBO: 08.5266.10
CAR: 142.953
CIFAM: 800-590
DELPHI: BG2584
FEBI BILSTEIN: 10869
FERODO: DDF351, DDF351-1
FTE: BS3779
GALFER: B1.G210-0242.1, G2110242
GRAF: DF29590
HELLA: 8DD355103-601, 8DD355103-611
HELLA PAGID: 8DD355103-601, 8DD355103-611
HERTH+BUSS JAKOPARTS: J3308007
JURID: 561505J
METELLI: 23-0590
MINTEX: MDC747
NIPPARTS: J3308007
NK: 205203
PAGID: 53403, 53403PRO
PEX: 14.0530
PILENGA: 5555
QUINTON HAZELL: 6331.00, BDC3779, BSF3779
REMSA: 6331.00
ROADHOUSE: 6331.00
ROULUNDS BRAKING: D2211
SUZUKI: 55211-60A00
TEXTAR: 92066000, 92066003, 98200066001
TRW: DF2588
VALEO: 185083, 186504
ZIMMERMANN: 540.2489.00
