DISC FRANA ATE 24.0116-0235.1

DISC FRANA ATE - 24.0116-0235.1

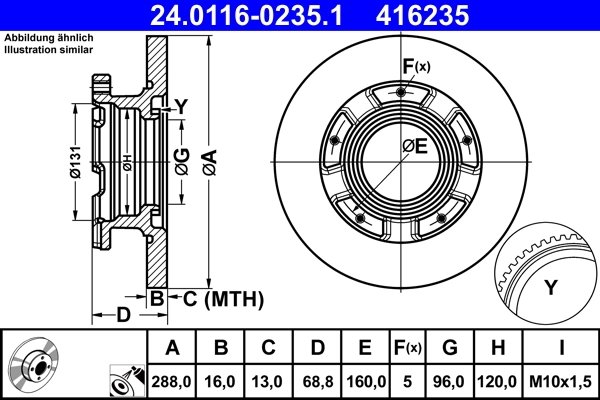

Caracteristici:

• Aprobare: E1 90R-02C0597/1088
• Inaltime [mm]: 68,8
• Tip disc frana: plin
• Grosime disc frana [mm]: 16,0
• Dimensiune filet: M10x1,5
• Grosime minima [mm]: 13,0
• Diametru interior [mm]: 120,0
• Diametru exterior [mm]: 288,0
• Numar gauri: 5
• Diametru de centrare [mm]: 96,0
• Asezare gauri O [mm]: 160,0
• Suprafata: acoperit (cu un strat protector)
• Articol completare/Info suplimentar 2: cu senzor ABS

Masini compatibile:

FORD
• TOURNEO CUSTOM V362 bus (F3) (2012-2023)
• TRANSIT CUSTOM V362 bus (F3) (2012-2023)
• TRANSIT CUSTOM V362 caroserie (FY, FZ) (2012-2023)
• TRANSIT V363 bus (FAD, FBD) (2013-2025)
• TRANSIT V363 caroserie (FCD, FDD) (2013-2025)
• TRANSIT V363 platou / sasiu (FED, FFD) (2013-2025)

Coduri echivalente:
BOSCH: 0986479A50
BREMBO: 08.C242.20
CAR: 142.1857
DELPHI: BG4673
FERODO: DDF2472
FORD: 1764283, 1867715, 2013002, 2021562, BK21-2A097-BA, BK21-2A097-FA, BK21-2A097-HA
FTE: BS7412, BS7412B
HELLA: 8DD355120-181
HELLA PAGID: 8DD355120-181
LPR: F1038PA
MINTEX: MDC2552
NK: 202590, 312590
PILENGA: 5294
QUINTON HAZELL: BDC6041
REMSA: 61564.00
ROADHOUSE: 61564.00
TEXTAR: 93260700, 93260703
TRW: DF6510S
VALEO: 197666
ZIMMERMANN: 250.1368.20
sbs: 1815202590, 1815312590
