DISC FRANA ATE 24.0122-0101.1

DISC FRANA ATE - 24.0122-0101.1

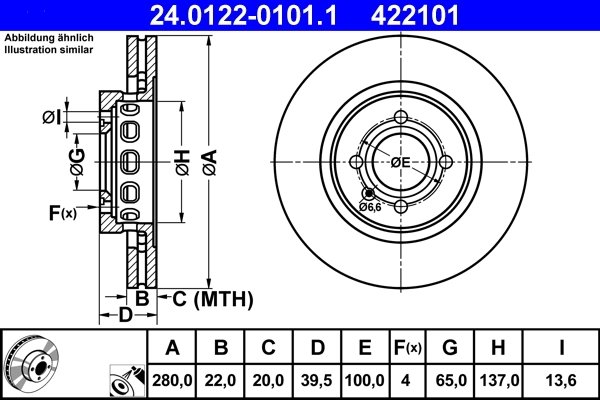

Caracteristici:

• Aprobare: E1 90R-02C0118/0160
• Inaltime [mm]: 39,5
• Diametrul orificiului [mm]: 13,6
• Tip disc frana: ventilat
• Grosime disc frana [mm]: 22,0
• Grosime minima [mm]: 20,0
• Procesare: continut ridicat de carbon
• Diametru interior [mm]: 137,0
• Diametru exterior [mm]: 280,0
• Numar gauri: 4
• Diametru de centrare [mm]: 65,0
• Asezare gauri O [mm]: 100,0
• Suprafata: acoperit (cu un strat protector)

Masini compatibile:

VW
• GOLF II (19E, 1G1) (1988-1991)
• PASSAT B3/B4 (3A2, 35I) (1988-1996)
• CORRADO (53I) (1988-1993)
• PASSAT B3/B4 Variant (3A5, 35I) (1988-1997)

SEAT
• IBIZA II (6K1) (1993-2002)
• CORDOBA (6K1, 6K2) (1993-2002)
• CORDOBA Vario (6K5) (1996-2002)
• CORDOBA VARIO caroserie inchisa/combi (6K5) (2000-2002)

Coduri echivalente:
BENDIX: 561608B
BOSCH: 0986478145, 0986478508
BRADI: 1.5819.2.4
BRECO: BS8195
BREMBO: 09.6728.10, 09.6728.75
CAR: 142.741
CIFAM: 800-656
DELPHI: BG2712, BG712
FEBI BILSTEIN: 11206
FERODO: DDF339, DDF339-1, DRF339
FTE: BS3783
GALFER: B1.G222-0101.1, G2122101
GRAF: DF29656
HELLA: 8DD355101-831
HELLA PAGID: 8DD355101-831
JURID: 561608J
METELLI: 23-0656
MGA: D1429
MINTEX: MDC744
NECTO: WN539
NK: 204755
PAGID: 53950
PEX: 14.0626
PILENGA: V852
QUINTON HAZELL: 6294.10, BDC3783, BSF3783
REMSA: 6294.10
ROADHOUSE: 6294.10
ROULUNDS BRAKING: D2169
SEAT: 535615301
SEBRO: 7138
TEXTAR: 92043500, 98200043501
TRW: DF2631
VAG: 535615301
VALEO: 186519
ZIMMERMANN: 600.1601.00, 600.1601.50
