DISC FRANA ATE 24.0122-0228.1

DISC FRANA ATE - 24.0122-0228.1

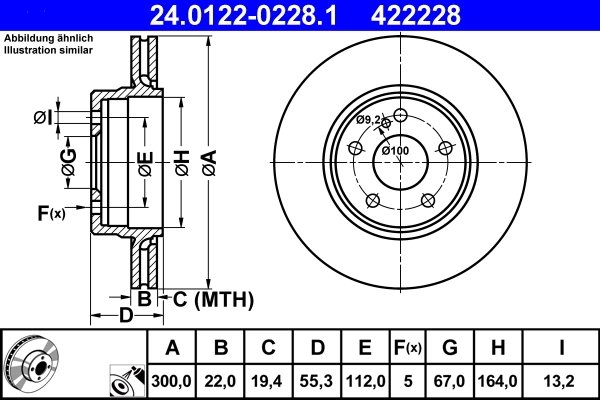

Caracteristici:

• Aprobare: E1 90R-02C0296/0783
• Inaltime [mm]: 55,3
• Diametrul orificiului [mm]: 13,2
• Tip disc frana: ventilat
• Grosime disc frana [mm]: 22,0
• Grosime minima [mm]: 19,4
• Procesare: aliat/cementat
• Diametru interior [mm]: 164,0
• Diametru exterior [mm]: 300,0
• Numar gauri: 5
• Diametru de centrare [mm]: 67,0
• Asezare gauri O [mm]: 112,0
• Suprafata: acoperit (cu un strat protector)

Masini compatibile:

MERCEDES-BENZ
• E-CLASS (W210) (1997-2002)
• C-CLASS (W202) (1997-2000)
• CLK (C208) (1998-2002)
• CLK Cabriolet (A208) (1998-2002)
• C-CLASS T-Model (S202) (1997-2001)
• C-CLASS (W203) (2001-2007)
• SLK (R170) (2001-2004)
• C-CLASS T-Model (S203) (2001-2007)
• CLK (C209) (2002-2009)
• C-CLASS cupe (CL203) (2002-2008)
• CLK Cabriolet (A209) (2002-2010)
• SLK (R171) (2004-2011)

CHRYSLER
• CROSSFIRE (2004-2007)
• CROSSFIRE Roadster (2004-2006)

Coduri echivalente:
BENDIX: 561875B
BOSCH: 0986479653
BREMBO: 09.A742.11
CHRYSLER: 05135505AA, 5135505AA
DELPHI: BG3726
FEBI BILSTEIN: 23210
FERODO: DDF1764, DDF1764-1
HELLA: 8DD355111-841, 8DD355111-851
HELLA PAGID: 8DD355111-841, 8DD355111-851
MERCEDES-BENZ: 2104230812, A2104230812
MINTEX: MDC1211
PAGID: 54372, 54372PRO
TEXTAR: 92060100, 92137200, 92137203, 98200060101, 98200137201, 98200137201PRO
TRW: DF4355
ZIMMERMANN: 400.3645.00, 400.3645.20
