DISC FRANA ATE 24.0122-0294.1

DISC FRANA ATE - 24.0122-0294.1

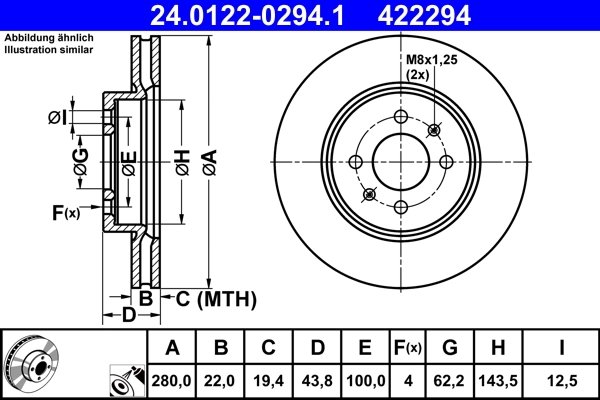

Caracteristici:

• Aprobare: E1 90R-02C0115/1043
• Inaltime [mm]: 43,8
• Diametrul orificiului [mm]: 12,5
• Tip disc frana: ventilat
• Grosime disc frana [mm]: 22,0
• Grosime minima [mm]: 19,4
• Procesare: aliat/cementat
• Diametru interior [mm]: 143,5
• Diametru exterior [mm]: 280,0
• Numar gauri: 4
• Diametru de centrare [mm]: 62,2
• Asezare gauri O [mm]: 100,0
• Suprafata: acoperit (cu un strat protector)

Masini compatibile:

KIA
• RIO III limuzina (UB) (2011-2017)
• RIO III (UB) (2011-2017)
• RIO IV (YB, SC, FB) (2017-2025)
• RIO IV limuzina (SC, FB) (2017-2022)
• RIO III Hatchback Van (UB) (2011-2020)
• RIO IV Hatchback Van (YB, SC, FB) (2017-2022)

HYUNDAI
• i20 II (GB, IB) (2014-2021)
• i20 II cupe (GB) (2015-2021)
• ACCENT IV (RB) (2015-2019)
• i20 ACTIVE (IB, GB) (2015-2018)
• i20 II Hatchback Van (GB, IB) (2015-2021)

Coduri echivalente:
BOSCH: 0986479B05, 0986479E98
BRECO: BS9056, BV9056
BREMBO: 09.C174.10, 09.C174.11
CAR: 142.1893
CIFAM: 800-1365C
DELPHI: BG4743C
FEBI BILSTEIN: 108438
FERODO: DDF2186C
FTE: BS7327
GALFER: B1.G222-0294.1, G2122294
HELLA: 8DD355118-251, 8DD355125-501
HELLA PAGID: 8DD355118-251, 8DD355125-501
HERTH+BUSS JAKOPARTS: J3300319
HYUNDAI: 51712-C8500
KIA: 51712-1W050
LPR: K2025V
METELLI: 23-1365C
MINTEX: MDC2362
NIPPARTS: N3300330
NK: 203536, 313536
PILENGA: V1850
REMSA: 61463.10
ROADHOUSE: 61463.10
TEXTAR: 92239303, 92288303
TRW: DF6842, DF6904
ZIMMERMANN: 320.3805.20
sbs: 1815203536, 1815313536
