DISC FRANA ATE 24.0124-0103.1

DISC FRANA ATE - 24.0124-0103.1

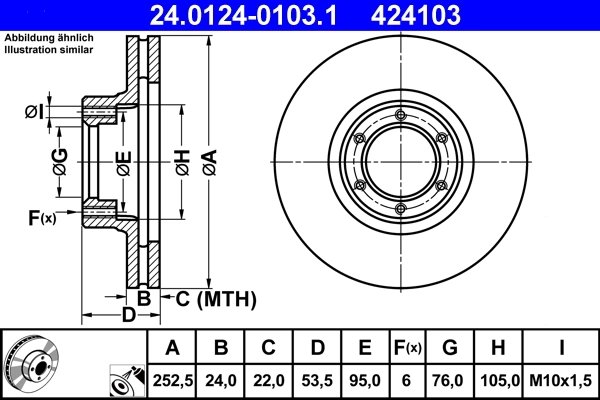

Caracteristici:

• Aprobare: E1 90R-02C0115/0378
• Inaltime [mm]: 53,5
• Tip disc frana: ventilat
• Grosime disc frana [mm]: 24,0
• Dimensiune filet: M10x1,5
• Grosime minima [mm]: 22,0
• Diametru interior [mm]: 105,0
• Diametru exterior [mm]: 252,5
• Numar gauri: 6
• Diametru de centrare [mm]: 76,0
• Asezare gauri O [mm]: 95,0
• Suprafata: acoperit (cu un strat protector)

Masini compatibile:

RENAULT
• 20 (127_) (1977-1983)
• 30 (127_) (1978-1984)
• TRAFIC bus (T_, P_, V_) (1989-2001)
• TRAFIC bus (T_, P_, V_) (1980-1989)
• TRAFIC caroserie (T_, P_, V_) (1980-1989)
• TRAFIC caroserie (T_, P_, V_) (1989-2001)
• TRAFIC platou / sasiu (T_, P_, V_) (1980-1989)
• TRAFIC platou / sasiu (T_, P_, V_) (1989-2001)

OPEL
• ARENA Combi (A97) (1998-2001)
• ARENA caroserie (TB, TF) (1998-2001)
• ARENA caroserie (A97) (1997-2001)
• ARENA bus (A97) (1997-2001)

VAUXHALL
• ARENA Van (A97) (1998-2001)
• ARENA Combi (A97) (1998-2001)

Coduri echivalente:
BARUM: BAR24103
BENDIX: 561171B
BOSCH: 0986478113
BRADI: 1.4004.2.4
BRECO: BS7831
BREMBO: 09.3357.10
CAR: 142.565
CIFAM: 800-051
DELPHI: BG2284, BG284
FERODO: DDF160, DDF160-1
FTE: BS3243
GRAF: DF2851
HELLA: 8DD355100-321, 8DD355100-331
HELLA PAGID: 8DD355100-321, 8DD355100-331
JURID: 561171J
METELLI: 23-0051
MGA: D851
MINTEX: MDC222
NECTO: WN324
NK: 203905
OPEL: 4403283, 9111283
PAGID: 52822, 52822PRO
PEX: 14.0470
PILENGA: V141
QUINTON HAZELL: 6157.10, BDC3243, BSF3243
REMSA: 6157.10, 6257.10
RENAULT: 7700561367, 7701204281
ROADHOUSE: 6157.10, 6257.10
ROULUNDS BRAKING: D2033
SEBRO: 5307
TEXTAR: 92017200, 92017203, 98200017201
TRW: DF1002, DF1002BP
VALEO: 185066, 186218, DF489
VAUXHALL: 4403283, 9111283
ZIMMERMANN: 470.1073.00
