DISC FRANA ATE 24.0124-0171.1

DISC FRANA ATE - 24.0124-0171.1

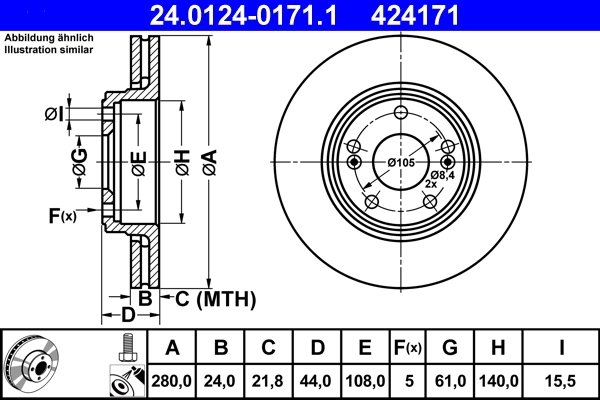

Caracteristici:

• Aprobare: E1 90R-02C0118/0275
• Inaltime [mm]: 44,0
• Diametrul orificiului [mm]: 15,5
• Tip disc frana: ventilat
• Grosime disc frana [mm]: 24,0
• Grosime minima [mm]: 21,8
• Procesare: aliat/cementat
• Diametru interior [mm]: 140,0
• Diametru exterior [mm]: 280,0
• Numar gauri: 5
• Diametru de centrare [mm]: 61,0
• Asezare gauri O [mm]: 108,0
• Suprafata: acoperit (cu un strat protector)
• Articol completare/Info suplimentar 2: cu suruburi

Masini compatibile:

RENAULT
• LAGUNA I (B56_, 556_) (1993-2001)
• SAFRANE I (B54_) (1992-1996)
• LAGUNA I Grandtour (K56_) (1995-2001)
• SAFRANE II (B54_) (1996-2000)
• ESPACE III (JE0_) (1996-2002)
• SCENIC I microbus (JA0/1_, FA0_) (2000-2003)

Coduri echivalente:
BARUM: BAR24171
BENDIX: 561593B, 562104B
BOSCH: 0986478734, 0986478797
BRADI: 1.4027.2.4, 1.4030.2.F
BRECO: BS8086
BREMBO: 09.5686.10, 09.7386.10, 09.7386.30, 09.7386.34, 09.8137.10, 09.8137.14, 09.8137.75
CAR: 142.544, 142.561
CIFAM: 800-533
DELPHI: BG2697
FEBI BILSTEIN: 12097
FERODO: DDF1101, DDF1123, DDF1123-1, DDF369, DRF1123
FTE: BS4406
GALFER: B1.G224-0171.1, G2124171
GRAF: DF29533
HELLA: 8DD355108-621, 8DD355108-631
HELLA PAGID: 8DD355108-621, 8DD355108-631
JURID: 561593J, 562104J
METELLI: 23-0533
MGA: D1215, D1372
MINTEX: MDC778
NK: 203913
PAGID: 50288, 52833, 54138, 54138PRO
PEX: 14.0498
PILENGA: V744, V748
QUINTON HAZELL: 6301.10, 6622.10, BDC4339, BDC4406, BSF4406
REMSA: 6301.10, 6622.10
RENAULT: 7700802231, 7700830283, 7701204305, 7701205231, 7701205843, 7701206198
ROADHOUSE: 6301.10, 6622.10
ROULUNDS BRAKING: D2168
SEBRO: 5360
TEXTAR: 92113800, 92113803, 98200102101, 98200113801
TRW: DF1033, DF4109, DF4164
VALEO: 185154, 186600
ZIMMERMANN: 470.2411.00, 470.2411.20, 470.2411.50
