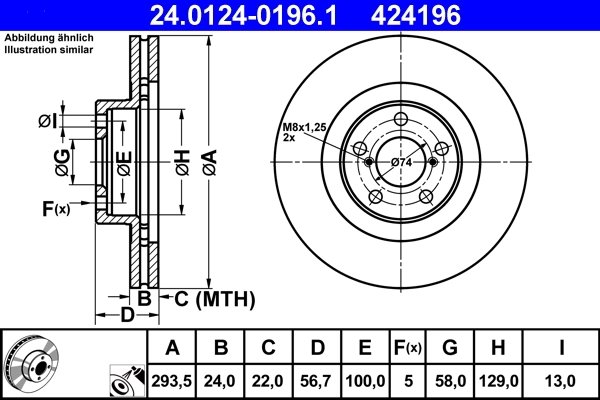

DISC FRANA ATE 24.0124-0196.1

DISC FRANA ATE - 24.0124-0196.1

Caracteristici:

• Aprobare: E1 90R-02C0115/0007
• Inaltime [mm]: 56,7
• Diametrul orificiului [mm]: 13,0
• Tip disc frana: ventilat
• Grosime disc frana [mm]: 24,0
• Grosime minima [mm]: 22,0
• Diametru interior [mm]: 129,0
• Diametru exterior [mm]: 293,5
• Numar gauri: 5
• Diametru de centrare [mm]: 58,0
• Asezare gauri O [mm]: 100,0
• Suprafata: acoperit (cu un strat protector)

Masini compatibile:

SUBARU
• XV (_GP_) (2012-2019)
• FORESTER (SH_) (2008-2015)
• IMPREZA limuzina (GC) (1998-2000)
• IMPREZA combi (GF) (1998-2000)
• IMPREZA limuzina (GD) (2000-2008)
• IMPREZA combi (GG) (2000-2008)
• OUTBACK (BE, BH) (2000-2003)
• FORESTER (SF_) (2001-2002)
• FORESTER (SG_) (2002-2012)
• OUTBACK (BL, BP) (2003-2009)
• LEGACY III combi (BH) (2000-2003)
• OUTBACK (BR) (2009-2018)
• IMPREZA hatchback (GR, GH, G3) (2008-2013)
• LEGACY V combi (BR) (2009-2014)
• LEGACY IV combi (BP) (2008-2009)
• LEGACY IV (BL) (2008-2009)
• IMPREZA limuzina (GE, GV) (2007-2014)
• LEGACY V (BM) (2009-2014)
• BRZ (ZC6) (2012-2017)
• FORESTER (SJ_) (2012-2018)
• IMPREZA hatchback (GP_) (2012-2017)
• XV (GT) (2017-2022)
• BRZ (ZD8) (2022-2025)

Coduri echivalente:
BOSCH: 0986478977
BRECO: BS8444
BREMBO: 09.9077.10, 09.9077.11, 09.9077.1X, 09.A921.11, 09.A921.14, 09.A921.1X, FS.153.000
CAR: 142.999
DELPHI: BG3413
FERODO: DDF1175, DDF1175-1, DDF1175C
FTE: BS5165
GALFER: B1.G224-0196.1, G2124196
HELLA: 8DD355112-051
HELLA PAGID: 8DD355112-051
HERTH+BUSS JAKOPARTS: J3307015
LPR: S4228V
MINTEX: MDC1377
NIPPARTS: J3307015, J3307018
NK: 204412
PAGID: 54395
PEX: 14.0523
PILENGA: V408
REMSA: 6816.10
ROADHOUSE: 6816.10
SUBARU: 26300AE060, 26300AE061, 26300FE010, 26300FE011, 26300FE040, 26300SA000, 26300SA001, 26310AC040, 26310AC041
TEXTAR: 92139500
TRW: DF4104
VALEO: 197775
ZIMMERMANN: 530.2458.00, 530.2458.20, 530.2458.50
sbs: 1815204412
