DISC FRANA ATE 24.0125-0192.1

DISC FRANA ATE - 24.0125-0192.1

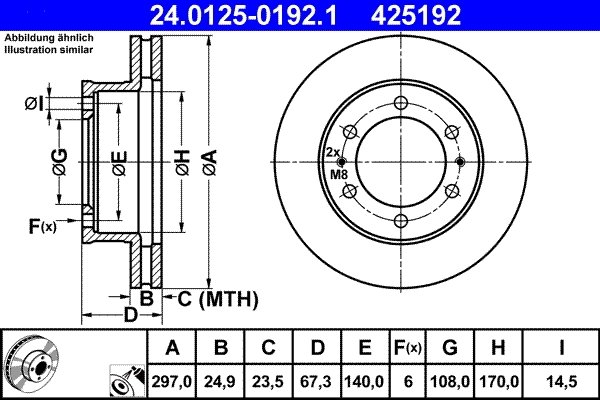

Caracteristici:

• Aprobare: E1 90R-02C0115/0291
• Inaltime [mm]: 67,3
• Diametrul orificiului [mm]: 14,5
• Tip disc frana: ventilat
• Grosime disc frana [mm]: 24,9
• Grosime minima [mm]: 23,5
• Diametru interior [mm]: 170,0
• Diametru exterior [mm]: 297,0
• Numar gauri: 6
• Diametru de centrare [mm]: 108,0
• Asezare gauri O [mm]: 140,0
• Suprafata: acoperit (cu un strat protector)

Masini compatibile:

TOYOTA
• FORTUNER (_N5_, _N6_) (2009-2015)
• HILUX VII pick-up (_N1_, _N2_, _N3_) (2004-2015)
• HILUX VII platou / sasiu (_N1_, _N2_) (2005-2010)

Coduri echivalente:
AP: 25218, 25218V
BOSCH: 0986479A96
BREMBO: 09.A634.10, 09.A634.11
CAR: 142.1609
CIFAM: 800-1077C
DELPHI: BG4211
FERODO: DDF1783C
FTE: BS7634, BS7634B
HELLA: 8DD355116-821
HELLA PAGID: 8DD355116-821
HERTH+BUSS JAKOPARTS: J3302001
JURID: 562861JC
LPR: T2066V
METELLI: 23-1077C
MINTEX: MDC2184
NIPPARTS: N3302174
NK: 2045140, 3145140
PAGID: 55226
QUINTON HAZELL: BDC5978
REMSA: 61205.10
TEXTAR: 92222600
TOYOTA: 43512-0K060, 43512-0K070
TRW: DF4917
ZIMMERMANN: 590.2820.20
sbs: 18152045140, 18153145140
