DISC FRANA ATE 24.0126-0150.1

DISC FRANA ATE - 24.0126-0150.1

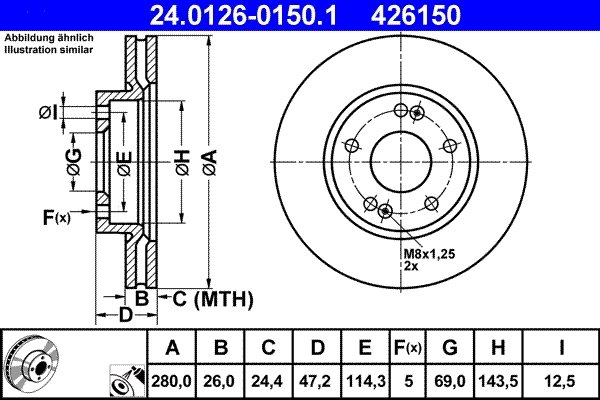

Caracteristici:

• Aprobare: E1 90R-02C0115/0349
• Inaltime [mm]: 47,2
• Diametrul orificiului [mm]: 12,5
• Tip disc frana: ventilat
• Grosime disc frana [mm]: 26,0
• Grosime minima [mm]: 24,4
• Procesare: aliat/cementat
• Diametru interior [mm]: 143,5
• Diametru exterior [mm]: 280,0
• Numar gauri: 5
• Diametru de centrare [mm]: 69,0
• Asezare gauri O [mm]: 114,3
• Suprafata: acoperit (cu un strat protector)

Masini compatibile:

HYUNDAI
• ix20 (JC) (2010-2019)
• i30 combi (FD) (2007-2012)
• i30 (FD) (2007-2011)
• i30 combi (GD) (2012-2017)

KIA
• CEE'D SW (ED) (2007-2012)
• SOUL I (AM) (2009-2014)
• CEE'D hatchback (ED) (2006-2012)
• PRO CEE'D (ED) (2008-2013)
• VENGA (YN) (2010-2019)
• CERATO II (TD) (2009-2013)
• SOUL II (PS) (2014-2018)
• SOUL III (SK3) (2019-2024)
• VENGA Hatchback Van (YN) (2015-2020)

Coduri echivalente:
BOSCH: 0986479C13
BREMBO: 09.9574.40, 09.9574.41
DELPHI: BG3861, BG4281
FEBI BILSTEIN: 31470
FERODO: DDF1619
GALFER: B1.G226-0150.1, G2126150
HELLA: 8DD355114-021
HELLA PAGID: 8DD355114-021
HYUNDAI: 51712-1H000, 51712-1H100
KIA: 51712-1H000, 51712-1H100, 51712-2K100
NIPPARTS: J3300530
NK: 203526
PAGID: 54616
PILENGA: V958
TEXTAR: 92133903, 92161600, 92161603, 98200161601
TRW: DF4865S
VALEO: 197205, 297205
ZIMMERMANN: 320.3806.20
sbs: 1815203526
