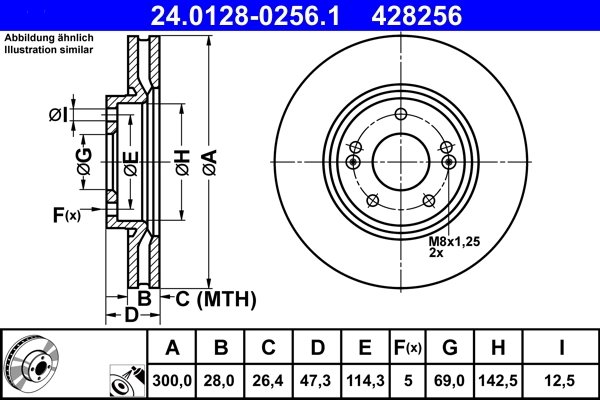

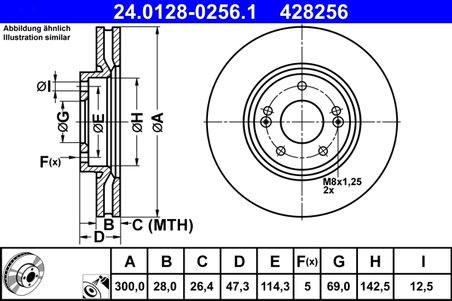

DISC FRANA ATE 24.0128-0256.1

DISC FRANA ATE - 24.0128-0256.1

Caracteristici:

• Aprobare: E1 90R-02C0115/0569
• Inaltime [mm]: 47,3
• Diametrul orificiului [mm]: 12,5
• Tip disc frana: ventilat
• Grosime disc frana [mm]: 28,0
• Grosime minima [mm]: 26,4
• Procesare: aliat/cementat
• Diametru interior [mm]: 142,5
• Diametru exterior [mm]: 300,0
• Numar gauri: 5
• Diametru de centrare [mm]: 69,0
• Asezare gauri O [mm]: 114,3
• Suprafata: acoperit (cu un strat protector)

Masini compatibile:

HYUNDAI
• SONATA V (NF) (2005-2010)
• ix35 (LM, EL, ELH) (2009-2015)
• i40 I CW (VF) (2011-2019)
• TUCSON (JM) (2004-2012)
• i40 I (VF) (2012-2019)
• i40 I Kombi Van (VF) (2015-2019)
• ix35 Van (2009-2015)
• TUCSON Autoutilitara/SUV (JM) (2004-2010)

KIA
• SPORTAGE III (SL) (2010-2016)
• OPTIMA (FSGDS6B) (2010-2015)
• CARENS IV (2013-2019)
• OPTIMA (JF) (2015-2019)
• OPTIMA Sportswagon (JF) (2016-2019)
• CARENS IV Van (A4) (2015-2016)

Coduri echivalente:
AP: 25230, 25230V
BENDIX: BDS1064HC
BOSCH: 0986479595, 0986479C51
BRECO: BS8840, BV8840
BREMBO: 09.A532.10, 09.A532.11, 09.A532.1X
CAR: 142.1383
DELPHI: BG4011
FERODO: DDF1630, DDF1630C
GALFER: B1.G228-0256.1, G2128256
HELLA: 8DD355114-511
HELLA PAGID: 8DD355114-511
HERTH+BUSS JAKOPARTS: J3300508, J3300511
HYUNDAI: 51712-2Y000, 51712-3K100, 51712-3K110, 51712-3K150, 51712-3K160
KIA: 51712-2Y000, 51712-3K160
MINTEX: MDC2043
NIPPARTS: N3300533
NK: 203422, 313422
PILENGA: V538
TEXTAR: 92166505
TRW: DF6108S
VALEO: 196031
ZIMMERMANN: 285.3518.20
sbs: 1815203422, 1815313422
