DISC FRANA ATE 24.0322-0152.1

DISC FRANA ATE - 24.0322-0152.1

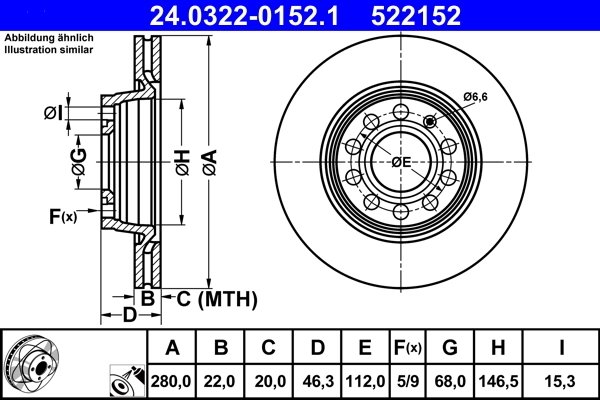

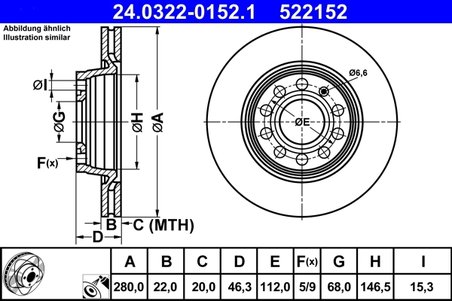

Caracteristici:

• Inaltime [mm]: 46,3
• Diametrul orificiului [mm]: 15,3
• Tip disc frana: ventilat
• Grosime disc frana [mm]: 22,0
• Grosime minima [mm]: 20,0
• Procesare: continut ridicat de carbon
• Diametru interior [mm]: 146,5
• Diametru exterior [mm]: 280,0
• Numar gauri: 5
• Diametru de centrare [mm]: 68,0
• Asezare gauri O [mm]: 112,0
• Suprafata: acoperit (cu un strat protector)
• Articol completare/Info suplimentar 2: cu suruburi
• Numar gauri 2: 9

Masini compatibile:

AUDI
• A4 B5 (8D2) (1994-2000)
• A4 B5 Avant (8D5) (1994-2001)
• A4 B6 (8E2) (2000-2004)
• A4 B6 Avant (8E5) (2001-2004)
• A4 B7 (8EC) (2004-2008)
• A4 B7 Avant (8ED) (2004-2008)
• A4 B7 Cabriolet (8HE) (2006-2009)

VW
• PASSAT B5 (3B2) (1996-2000)
• PASSAT B5 Variant (3B5) (1997-2000)

SEAT
• EXEO (3R2) (2008-2013)
• EXEO ST (3R5) (2009-2013)

Coduri echivalente:
BENDIX: 562060B
BOSCH: 0986478869, 0986479916
BRADI: 1.5834.2.4
BREMBO: 09.7196.10, 09.7196.11, 09.7196.14, 09.7196.1X, FD.080.000, FS.080.000
CAR: 142.751
CIFAM: 800-468
DELPHI: BG3198
FEBI BILSTEIN: 18398
FERODO: DDF1003, DDF1708, DRF1003
FTE: BS4752, BS7041
GRAF: DF29468
HELLA: 8DD355105-521, 8DD355105-531
HELLA PAGID: 8DD355105-521, 8DD355105-531
JURID: 562060J, 562060JC
METELLI: 23-0468
MGA: D1268
MINTEX: MDC1031
NK: 204762
PAGID: 53961, 53961PRO
PEX: 14.0642, 14.0642N
PILENGA: V851
QUINTON HAZELL: 6548.10, BDC4752, BSF4752
REMSA: 6548.10
ROADHOUSE: 6548.10
SEBRO: 7089
TEXTAR: 92083500, 92083503, 92083505, 98200083501, 98200083501PRO
TRW: DF2806, DF2806BP
VAG: 8E0615301B, 8E0615301D, 8E0615301P
VALEO: 186582, 297582
ZIMMERMANN: 600.3207.00, 600.3207.20, 600.3207.50, 600.3207.52, 600.3207.70
