DISC FRANA ATE 24.0325-0162.1

DISC FRANA ATE - 24.0325-0162.1

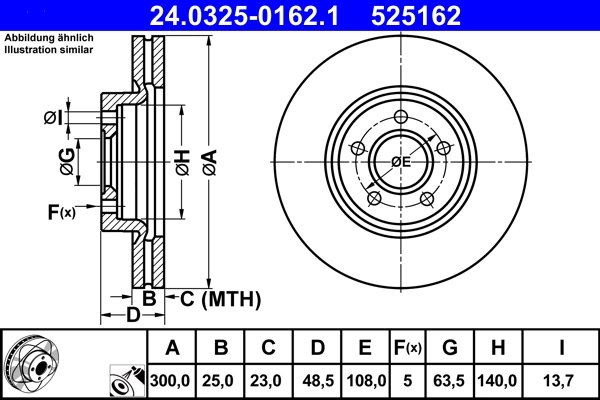

Caracteristici:

• Aprobare: E1 90R-02C0858/1304
• Inaltime [mm]: 48,5
• Diametrul orificiului [mm]: 13,7
• Tip disc frana: ventilat
• Grosime disc frana [mm]: 25,0
• Grosime minima [mm]: 23,0
• Procesare: continut ridicat de carbon
• Diametru interior [mm]: 140,0
• Diametru exterior [mm]: 300,0
• Numar gauri: 5
• Diametru de centrare [mm]: 63,5
• Asezare gauri O [mm]: 108,0
• Suprafata: acoperit (cu un strat protector)

Masini compatibile:

FORD
• C-MAX II (DXA/CB7, DXA/CEU) (2010-2019)
• GRAND C-MAX (DXA/CB7, DXA/CEU) (2010-2019)
• FOCUS III limuzina (2010-2020)
• FOCUS III (2010-2020)
• FOCUS III Turnier (2010-2020)
• FOCUS II Turnier (DA_, FFS, DS) (2004-2012)
• FOCUS II (DA_, HCP, DP) (2004-2012)
• FOCUS C-MAX (DM2) (2003-2007)
• C-MAX (DM2) (2007-2010)
• FOCUS II limuzina (DB_, FCH, DH) (2005-2012)
• FOCUS II Cabriolet (2006-2010)
• KUGA I (2008-2012)
• TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 microbus (2013-2022)
• KUGA II (DM2) (2013-2021)
• TRANSIT CONNECT microbus (2013-2023)
• TRANSIT CONNECT V408 Autoutilitara/limuzina spatioasa (2013-2023)
• KUGA II VAN (2014-2019)
• GRAND C-MAX Van (2010-2019)
• C-MAX II Van (2010-2019)
• FOCUS III caroserie inchisa/combi (2014-2020)
• FOCUS III Caseta/ Hatchback (2011-2020)
• FOCUS II caroserie inchisa/combi (2005-2011)
• KUGA I VAN (2008-2012)

VOLVO
• C30 (533) (2006-2013)
• C70 II Cabriolet (542) (2006-2013)
• S40 II (544) (2004-2012)
• V50 (545) (2003-2012)
• V40 hatchback (525) (2012-2019)
• V40 Cross Country (526) (2012-2019)
• V40 Caseta/ Hatchback (525) (2013-2015)
• V40 Cross Country (526) (2013-2015)

Coduri echivalente:
AP: 25442, 25442V
BENDIX: 562363B, 562434B, BDS1533
BOSCH: 0986479171, 0986479701, 0986479956
BRECO: BS9052, BV9052
BREMBO: 09.9468.10, 09.9468.11, 09.9468.14, 09.9468.1X, 09.9468.75, 09.C138.10, 09.C138.11, FD.213.000
CAR: 142.1144, 142.1170
CIFAM: 800-687
DELPHI: BG3895, BG3895C
FEBI BILSTEIN: 24566
FERODO: DDF1225, DDF1225C
FORD: 1223664, 1223666, 1253964, 1253965, 1323560, 1373370, 1469083, 1500152, 1520297, 1797226, 1829606, DV61-1125-DA, DV61-1125-EA
FTE: BS5487
GRAF: DF29687
HELLA: 8DD355112-181, 8DD355112-191, 8DD355119-511
HELLA PAGID: 8DD355112-181, 8DD355112-191, 8DD355119-511
JURID: 562363JC
METELLI: 23-0687
MINTEX: MDC1641, MDC2530
NK: 204849
PAGID: 54413
PEX: 14.0791
QUINTON HAZELL: 6711.10, BDC5487
REMSA: 6711.10
ROADHOUSE: 6711.10
TEXTAR: 92141300, 92141303, 92141305, 92255703, 98200141301, 98200141301PRO
TRW: DF4313, DF4424
VALEO: 186863
VOLVO: 274510, 31262719, 31341643, 31362412, 31381375, 31400817, 31400937, 31400941, 31471749, 31471834
ZIMMERMANN: 250.1353.00, 250.1353.20
