DISC FRANA ATE 24.0330-0113.1

DISC FRANA ATE - 24.0330-0113.1

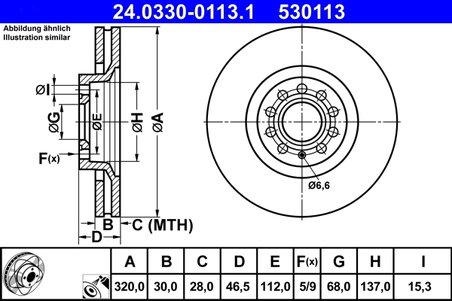

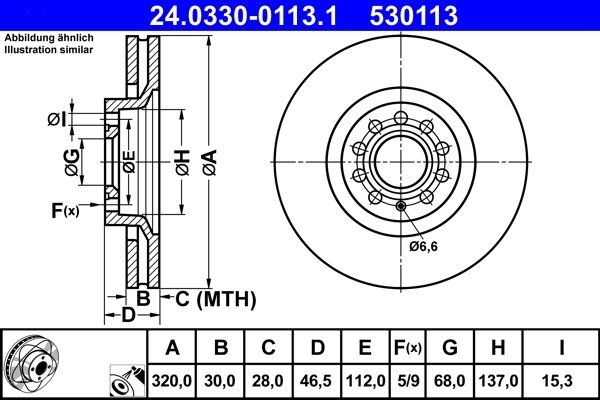

Caracteristici:

• Aprobare: E1 90R-02C0553/1199
• Inaltime [mm]: 46,5
• Diametrul orificiului [mm]: 15,3
• Tip disc frana: ventilat
• Grosime disc frana [mm]: 30,0
• Grosime minima [mm]: 28,0
• Procesare: continut ridicat de carbon
• Diametru interior [mm]: 137,0
• Diametru exterior [mm]: 320,0
• Numar gauri: 5
• Diametru de centrare [mm]: 68,0
• Asezare gauri O [mm]: 112,0
• Suprafata: acoperit (cu un strat protector)
• Numar gauri 2: 9

Masini compatibile:

AUDI
• A6 C5 (4B2, 4B4) (1997-2005)
• A4 B5 (8D2) (1997-2001)
• A4 B5 Avant (8D5) (1997-2001)
• A6 C5 Avant (4B5, 4B6) (1997-2005)
• ALLROAD C5 (4BH) (2000-2005)
• A4 B6 (8E2) (2000-2004)
• A4 B6 Avant (8E5) (2001-2004)
• A4 B6 Cabriolet (8H7) (2002-2005)
• A4 B7 (8EC) (2004-2008)
• A4 B7 Avant (8ED) (2004-2008)
• A4 B7 Cabriolet (8HE) (2006-2009)

SEAT
• EXEO (3R2) (2008-2013)
• EXEO ST (3R5) (2009-2013)

Coduri echivalente:
BENDIX: 562205B
BOSCH: 0986478985
BREMBO: 09.8689.11, 09.8689.75, 09.A598.10, 09.A598.11
CAR: 142.1132, 142.753
CIFAM: 800-705
DELPHI: BG3714
FEBI BILSTEIN: 22950
FERODO: DDF1166, DDF1705, DDF1705C, DDF1705C-1
FTE: BS5278
GRAF: DF29705
HELLA: 8DD355107-621, 8DD355107-631
HELLA PAGID: 8DD355107-621, 8DD355107-631
JURID: 562205J
METELLI: 23-0705
MINTEX: MDC1444
NK: 2047107
PAGID: 50316, 50316PRO
PILENGA: V868
QUINTON HAZELL: BDC5278, BSF5278
TEXTAR: 92106700, 92106705, 92106710, 98200106701, 98200106701PRO
TRW: DF4209, DF4209S, DF4258S
VAG: 8D0615301K, 8D0615301M, 8E0615301AD
VALEO: 196027, 197198, 297198
ZIMMERMANN: 100.1249.00, 100.1249.20, 100.1249.50, 100.1249.52
