DISC FRANA ATE 24.0110-0203.1

DISC FRANA ATE - 24.0110-0203.1

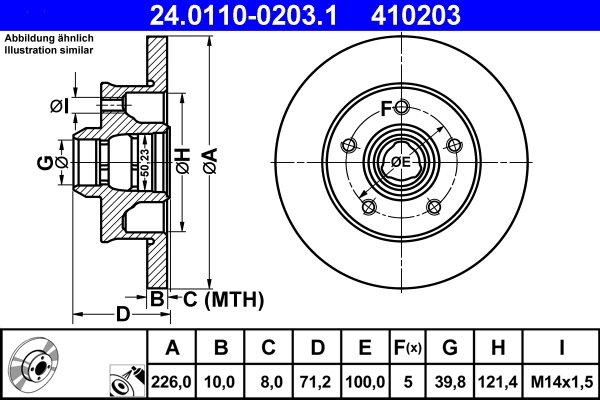

Caracteristici:

• Inaltime [mm]: 71,2
• Tip disc frana: plin
• Grosime disc frana [mm]: 10,0
• Dimensiune filet: M14x1,5
• Grosime minima [mm]: 8,0
• Diametru interior [mm]: 121,4
• Diametru exterior [mm]: 226,0
• Numar gauri: 5
• Diametru de centrare [mm]: 39,8
• Asezare gauri O [mm]: 100,0
• Suprafata: acoperit (cu un strat protector)
• Dimanetru suport [mm]: 50,2
• Articol completare/Info suplimentar 2: fara senzor ABS

Masini compatibile:

VW
• PASSAT B3/B4 (3A2, 35I) (1991-1996)
• CORRADO (53I) (1991-1995)
• GOLF III (1H1) (1991-1997)
• VENTO (1H2) (1991-1998)
• PASSAT B3/B4 Variant (3A5, 35I) (1991-1997)

SEAT
• TOLEDO I (1L2) (1991-1999)

Coduri echivalente:
BARUM: BAR10203
BENDIX: 561620B
BOSCH: 0986478332
BRADI: 1.5816.5.5
BRECO: BS7430
BREMBO: 08.5005.20
CAR: 142.716
CIFAM: 800-312
DELPHI: BG2714, BG714
FEBI BILSTEIN: 11394
FERODO: DDF266, DDF266-1, DRF266
FTE: BS3937
GALFER: B1.G210-0203.1, G2110203
GRAF: DF29312
HELLA: 8DD355102-751
HELLA PAGID: 8DD355102-751
JURID: 561620J
METELLI: 23-0312
MGA: D1112
MINTEX: MDC787
NK: 204736
PAGID: 53912, 54538
PEX: 14.0624
PILENGA: 5254
QUINTON HAZELL: 6025.00, BDC3937, BSF3937
REMSA: 6025.00
ROADHOUSE: 6025.00
ROULUNDS BRAKING: D2249
SEAT: 357615601B
SEBRO: 7105
TEXTAR: 92057200, 92153800, 98200057201, 98200153801
TRW: DF1540, DF1540BP
VAG: 357615601B
VALEO: 185157, 186517
ZIMMERMANN: 600.3201.00, 600.3201.50
