TAMBUR FRANA ATE 24.0218-5002.1

TAMBUR FRANA ATE - 24.0218-5002.1

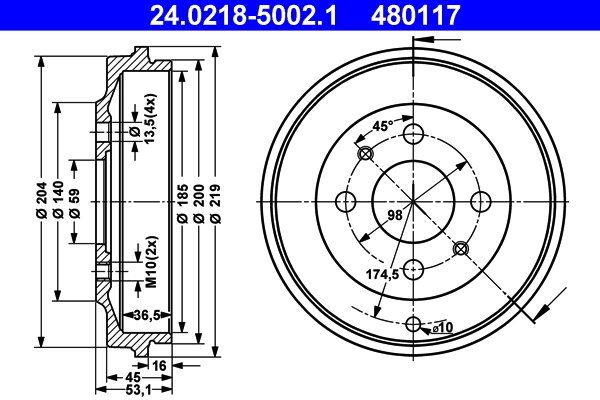

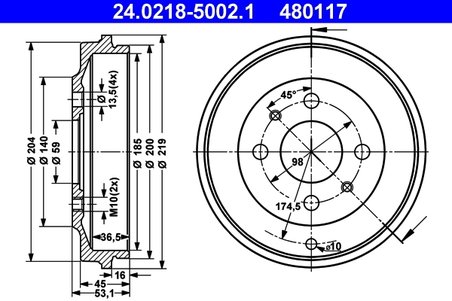

Caracteristici:

• Diametrul orificiului [mm]: 13,5
• Diametru tambur de frana exterior [mm]: 219,0
• cota max. desfacere tambur de frana [mm]: 186,8
• Inaltime tambur de frana interior [mm]: 36,5
• Inaltime tambur de frana total [mm]: 53,1
• Numar gauri: 4
• Asezare gauri O [mm]: 98,0
• Dimanetru suport [mm]: 59,0
• Diametru tambur de frana interior [mm]: 185,0

Masini compatibile:

FIAT
• CINQUECENTO (170_) (1994-1998)
• PALIO (178_, 171_, 371_) (1996-2002)
• SEICENTO / 600 (187_) (1997-2010)
• ALBEA (178_, 172_, 372_) (1996-2012)
• SEICENTO / 600 Caseta/ Hatchback (287_) (1998-2010)

Coduri echivalente:
BENDIX: 329222B
BOSCH: 0986477125
BREMBO: 14.7260.10
CIFAM: 700-018, 700-023, 700-024
DELPHI: BF389
FIAT: 46448407, 5923606, 98601861
FTE: BT1024
HELLA: 8DT355301-431
HELLA PAGID: 8DT355301-431
JURID: 329222J
LPR: 7D0263
METELLI: 18-0018, 18-0023, 18-0024
MGA: T7470
MINTEX: MBD011
NK: 252315
OMC: 100132, 100133
PAGID: 62919
PEX: 15.0009, 15.0012, 15.0013
QUINTON HAZELL: 7028.00, BDR390, BDR424, BTF390
REMSA: 7028.00
ROADHOUSE: 7028.00
TEXTAR: 94020000, 98100020001
TRW: DB4201, DB4295
