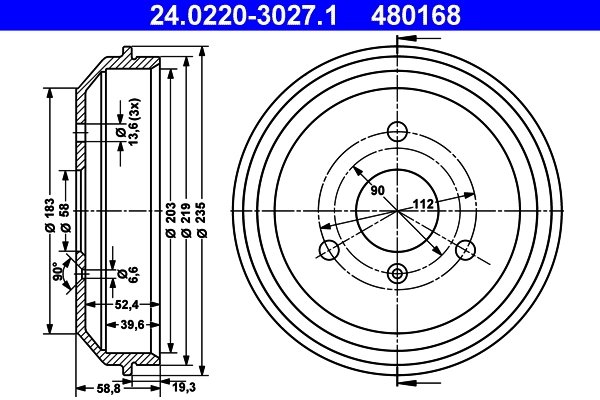

TAMBUR FRANA ATE 24.0220-3027.1

TAMBUR FRANA ATE - 24.0220-3027.1

Caracteristici:

• Aprobare: E1 90R-02D0324/1876
• Diametrul orificiului [mm]: 12,8
• Diametru tambur de frana exterior [mm]: 235,0
• cota max. desfacere tambur de frana [mm]: 204,5
• Inaltime tambur de frana interior [mm]: 39,6
• Inaltime tambur de frana total [mm]: 58,8
• Numar gauri: 3
• Asezare gauri O [mm]: 112,0
• Dimanetru suport [mm]: 58,0
• Diametru tambur de frana interior [mm]: 203,0

Masini compatibile:

SMART
• CITY-COUPE (450) (1998-2004)
• CABRIO (450) (2000-2004)
• CROSSBLADE (450) (2002-2003)
• ROADSTER (452) (2003-2005)
• ROADSTER cupe (452) (2003-2005)
• FORTWO cupe (450) (2004-2007)
• FORTWO Cabrio (450) (2004-2007)
• FORTWO cupe (451) (2007-2018)
• FORTWO Cabrio (451) (2007-2018)

Coduri echivalente:
BENDIX: 329263B
BOSCH: 0986477103
BREMBO: 14.A683.10
CIFAM: 700-361
DELPHI: BF465
FTE: BT597
HELLA: 8DT355301-581, 8DT355301-851
HELLA PAGID: 8DT355301-581, 8DT355301-851
METELLI: 18-0361
OMC: 100666
PAGID: 61359, 62934
PEX: 15.0199
SMART: 0004329V001000000, 0004329V003000000, 0004329V004000000, 0004329V005000000, 4514230001
TEXTAR: 94022400, 98100022401
TRW: DB4298
VALEO: 237035
ZIMMERMANN: 405.4101.00, 405.4101.20
