TAMBUR FRANA ATE 24.0220-3050.1
lei256.24
Tax included
Compatibil cu SEAT, SKODA, VW
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
TAMBUR FRANA ATE - 24.0220-3050.1
Caracteristici:
Masini compatibile:
SEAT
• IBIZA V (KJ1, KJG) (2017-2025)
• ARONA (KJ7, KJP) (2017-2025)
VW
• POLO VI (AW1, BZ1, AE1) (2017-2025)
SKODA
• FABIA IV (PJ3) (2021-2025)
Coduri echivalente:
BENDIX: BDM1180
DELPHI: BF563
HELLA: 8DT355303-441
HELLA PAGID: 8DT355303-441
MINTEX: MBD432
NK: 254736
SEAT: 2Q0609617
SKODA: 2Q0609617
TEXTAR: 94048200
VAG: 2Q0609617
ZIMMERMANN: 600.1969.20

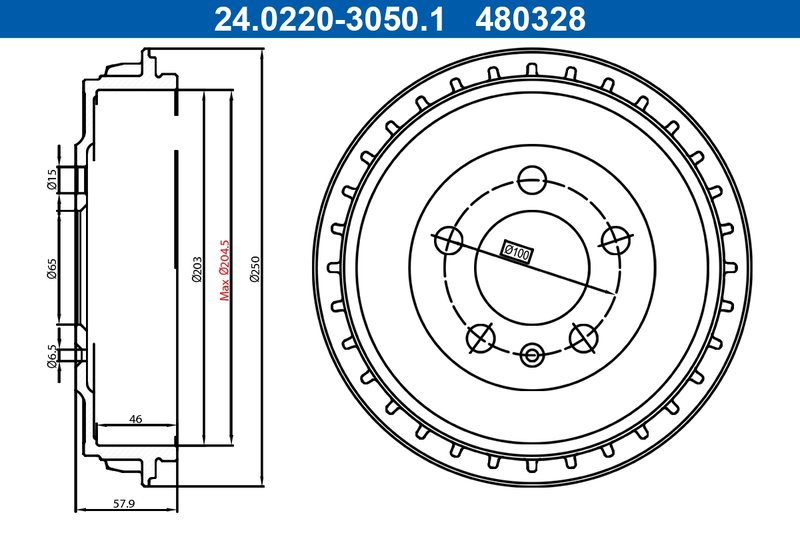

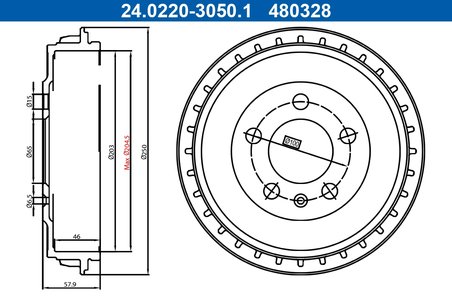

Caracteristici:
- Aprobare: E1 90R-02D0324/1876
- Diametrul orificiului [mm]: 15,6
- Diametru tambur de frana exterior [mm]: 250,0
- cota max. desfacere tambur de frana [mm]: 204,5
- Inaltime tambur de frana interior [mm]: 46,0
- Inaltime tambur de frana total [mm]: 57,9
- Numar gauri: 5
- Asezare gauri O [mm]: 100,0
- Dimanetru suport [mm]: 65,0
- Diametru tambur de frana interior [mm]: 203,0
Masini compatibile:
SEAT
• IBIZA V (KJ1, KJG) (2017-2025)
• ARONA (KJ7, KJP) (2017-2025)
VW
• POLO VI (AW1, BZ1, AE1) (2017-2025)
SKODA
• FABIA IV (PJ3) (2021-2025)
Coduri echivalente:
BENDIX: BDM1180
DELPHI: BF563
HELLA: 8DT355303-441
HELLA PAGID: 8DT355303-441
MINTEX: MBD432
NK: 254736
SEAT: 2Q0609617
SKODA: 2Q0609617
TEXTAR: 94048200
VAG: 2Q0609617
ZIMMERMANN: 600.1969.20
