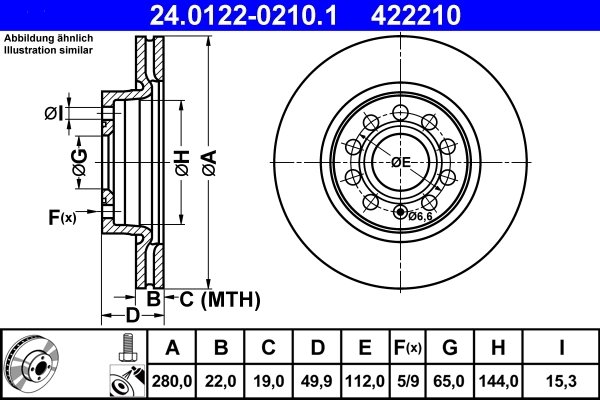

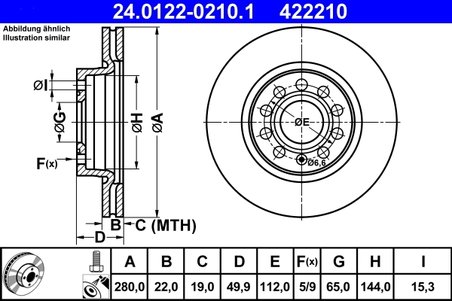

DISC FRANA ATE 24.0122-0210.1

DISC FRANA ATE - 24.0122-0210.1

Caracteristici:

• Aprobare: E1 90R-02C0115/0139
• Inaltime [mm]: 49,9
• Diametrul orificiului [mm]: 15,3
• Tip disc frana: ventilat
• Grosime disc frana [mm]: 22,0
• Grosime minima [mm]: 19,0
• Procesare: continut ridicat de carbon
• Diametru interior [mm]: 144,0
• Diametru exterior [mm]: 280,0
• Numar gauri: 5
• Diametru de centrare [mm]: 65,0
• Asezare gauri O [mm]: 112,0
• Suprafata: acoperit (cu un strat protector)
• Articol completare/Info suplimentar 2: cu suruburi
• Numar gauri 2: 9

Masini compatibile:

SEAT
• LEON (1P1) (2005-2013)
• ALTEA (5P1) (2004-2015)
• TOLEDO III (5P2) (2004-2009)
• ALTEA XL (5P5, 5P8) (2006-2015)

VW
• GOLF PLUS V (5M1, 521) (2004-2013)
• GOLF VI (5K1) (2008-2013)
• JETTA IV (162, 163, AV3, AV2) (2010-2018)
• GOLF VI Variant (AJ5) (2009-2013)
• CADDY III microbus (2KB, 2KJ, 2CB, 2CJ) (2004-2015)
• JETTA III (1K2) (2004-2010)
• BEETLE (5C1, 5C2) (2011-2019)
• GOLF V (1K1) (2003-2009)
• GOLF V Variant (1K5) (2007-2009)
• BEETLE Cabriolet (5C7, 5C8) (2011-2019)
• GOLF IV (9B3) (2007-2014)
• JETTA VII limuzina (BU3, BU4) (2017-2022)
• CADDY III Autoutilitara/limuzina spatioasa (2KA, 2KH, 2CA, 2 (2004-2015)
• CADDY Autoutilitara/limuzina spatioasa (6K9, 9E7, 9E9) (1998-2009)
• GOLF VI Van (5K1) (2008-2012)
• GOLF VAN VI Variant (AJ5) (2009-2014)
• GOLF PLUS Van (521) (2009-2014)
• GOLF Caseta/ Hatchback (1K1) (2003-2006)

SKODA
• OCTAVIA II Combi (1Z5) (2004-2013)
• OCTAVIA II (1Z3) (2004-2013)
• YETI (5L) (2009-2017)

AUDI
• A3 (8P1) (2003-2012)
• A3 Sportback (8PA) (2004-2013)
• A3 Cabriolet (8P7) (2008-2013)

Coduri echivalente:
BARUM: BAR22210
BENDIX: 562237B
BOSCH: 0986479098, 0986479940
BREMBO: 09.9167.10, 09.9167.11, 09.9167.1X, 09.9167.75
CAR: 142.1019
CIFAM: 800-733
DELPHI: BG3832
FEBI BILSTEIN: 22904
FERODO: DDF1223, DDF1223C
FTE: BS5417
GALFER: B1.G222-0210.1, G2122210
GRAF: DF29733
HELLA: 8DD355109-551, 8DD355109-561
HELLA PAGID: 8DD355109-551, 8DD355109-561
JURID: 562237J
METELLI: 23-0733
MGA: D1470
MINTEX: MDC1639
NK: 204787, 344787
PAGID: 54207, 54207PRO
QUINTON HAZELL: 6647.10
REMSA: 6647.10
ROADHOUSE: 6647.10
SEAT: 1K0615301AC, 1K0615301AK, 1K0615301AS, 1K0615301S
SKODA: 1K0615301AC, 1K0615301AK, 1K0615301AS, 1K0615301S
TEXTAR: 92120700, 92120703, 92120705, 98200120701, 98200120701PRO
TRW: DF4294
VAG: 1K0615301AC, 1K0615301AK, 1K0615301AS, 1K0615301S, 5C0615301, JZW615301A
VALEO: 186754, 297754
ZIMMERMANN: 600.3233.00, 600.3233.20, 600.3233.50, 600.3233.52
sbs: 1815204787, 1815344787
