DISC FRANA ATE 24.0122-0211.1

DISC FRANA ATE - 24.0122-0211.1

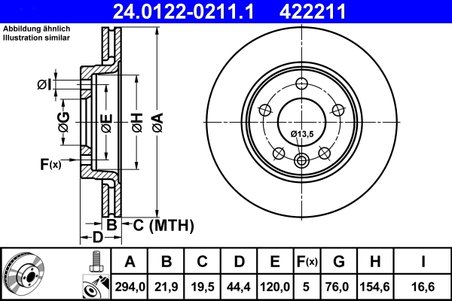

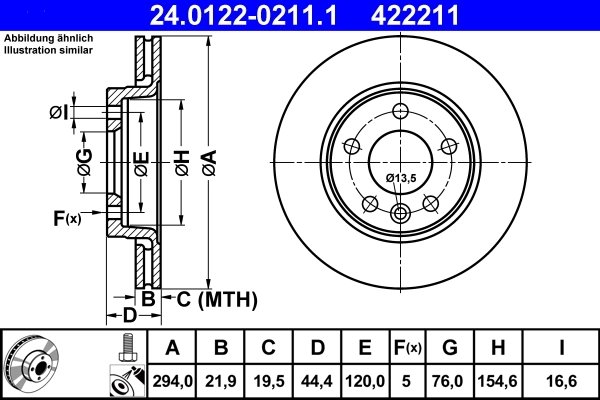

Caracteristici:

• Aprobare: E1 90R-02C0118/0060
• Inaltime [mm]: 44,4
• Diametrul orificiului [mm]: 16,6
• Tip disc frana: ventilat
• Grosime disc frana [mm]: 21,9
• Grosime minima [mm]: 19,5
• Procesare: continut ridicat de carbon
• Diametru interior [mm]: 154,6
• Diametru exterior [mm]: 294,0
• Numar gauri: 5
• Diametru de centrare [mm]: 76,0
• Asezare gauri O [mm]: 120,0
• Suprafata: acoperit (cu un strat protector)
• Articol completare/Info suplimentar 2: cu suruburi

Masini compatibile:

VW
• TRANSPORTER T5 bus (7HB, 7HJ, 7EB, 7EJ) (2003-2015)
• MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) (2003-2015)
• TRANSPORTER T5 platou / sasiu (7JD, 7JE, 7JL, 7JY, 7JZ, 7FD, (2003-2015)
• TRANSPORTER T5 caroserie (7HA, 7HH, 7EA, 7EH) (2003-2015)
• TRANSPORTER T6 / CARAVELLE T6 bus (SGB, SGJ, SHB, SHJ) (2015-2024)
• TRANSPORTER T6 caroserie (SGA, SGH, SHA, SHH) (2015-2024)
• TRANSPORTER T6 platou / sasiu (SFD, SFE, SFL, SFZ, SJD, SJE, (2015-2024)
• MULTIVAN T6 (SGF, SGM, SGN, SHM, SHN) (2015-2024)
• CALIFORNIA T6 Camper (SGC, SGG, SHC) (2015-2024)
• CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) (2007-2015)

Coduri echivalente:
BARUM: BAR22211
BENDIX: 562262B
BOSCH: 0986479097
BRECO: BS8553
BREMBO: 09.9582.10, 09.9582.11, RD.165.000
CAR: 142.1028
CIFAM: 800-728
DELPHI: BG3893
FEBI BILSTEIN: 28682
FERODO: DDF1286, DDF1286C
FTE: BS5473
GALFER: B1.G222-0211.1, G2122211
GRAF: DF29728
HELLA: 8DD355109-691, 8DD355109-701
HELLA PAGID: 8DD355109-691, 8DD355109-701
JURID: 562262J
LPR: V2008P
METELLI: 23-0728
MINTEX: MDC1708
NK: 204797
PAGID: 54214, 54214PRO
PEX: 14.0733
QUINTON HAZELL: 6707.10, BDC5473, BSF5473
REMSA: 6707.10
ROADHOUSE: 6707.10
TEXTAR: 92121400, 92121403, 98200121401, 98200121401PRO
TRW: DF4312
VAG: 7E0615601D, 7H0615601B
VALEO: 186886, 297886
ZIMMERMANN: 600.3232.00, 600.3232.50
sbs: 1815204797
