DISC FRANA ATE 24.0123-0109.1

DISC FRANA ATE - 24.0123-0109.1

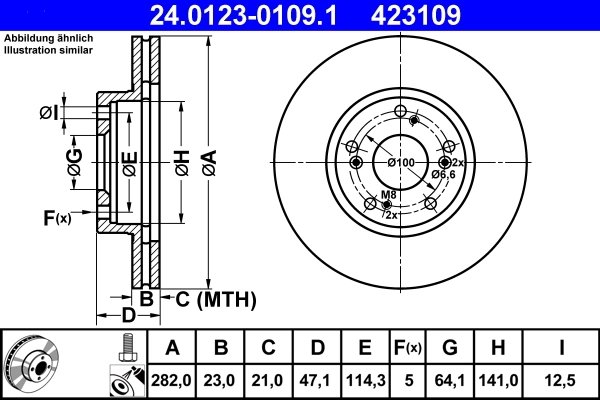

Caracteristici:

• Aprobare: E1 90R-02C0115/0237
• Inaltime [mm]: 47,1
• Diametrul orificiului [mm]: 12,5
• Tip disc frana: ventilat
• Grosime disc frana [mm]: 23,0
• Grosime minima [mm]: 21,0
• Diametru interior [mm]: 141,0
• Diametru exterior [mm]: 282,0
• Numar gauri: 5
• Diametru de centrare [mm]: 64,1
• Asezare gauri O [mm]: 114,3
• Suprafata: acoperit (cu un strat protector)
• Articol completare/Info suplimentar 2: cu suruburi

Masini compatibile:

HONDA
• CIVIC VII Hatchback (EU, EP, EV) (2000-2005)
• CIVIC VII cupe (EM2) (2001-2005)
• STREAM (RN) (2001-2006)
• CIVIC VII limuzina (ES, ET) (2000-2005)
• CR-V II (RD_) (2001-2007)
• STEPWGN (LA-RF_, UA-RF_) (2000-2005)
• STEPWGN (DBA-RG_) (2005-2009)
• STREAM (RN) (2005-2014)
• STEPWGN (DBA-RK_) (2009-2015)

Coduri echivalente:
AP: 24836
BENDIX: 562457B, BDS1392
BOSCH: 0986479365
BRECO: BS8460
BREMBO: 09.6752.20
CAR: 142.1186
DELPHI: BG3720
FERODO: DDF1496, DDF1496-1, DDF1496C
FTE: BS5411
GALFER: B1.G223-0109.1, G2123109
HELLA: 8DD355110-631
HELLA PAGID: 8DD355110-631
HERTH+BUSS JAKOPARTS: J3304003
HONDA: 45251-S7A-N10, 45251-SCA-E00, 45251-SMC-N10, 45251-SMC-N11
MINTEX: MDC1567
NIPPARTS: J3304045
NK: 202626
PAGID: 54284
TEXTAR: 92128400, 98200128401
TRW: DF4486, DF7169
VALEO: 297267
ZIMMERMANN: 280.3167.00, 280.3167.20, 280.3167.50
sbs: 1815202626
