DISC FRANA ATE 24.0123-0123.1

DISC FRANA ATE - 24.0123-0123.1

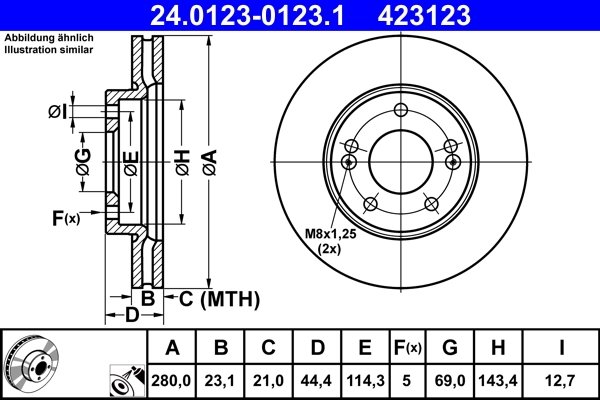

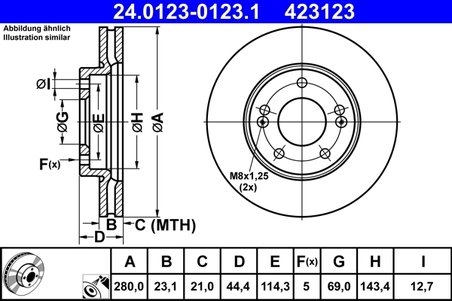

Caracteristici:

• Aprobare: E1 90R-02C0115/1042
• Inaltime [mm]: 44,4
• Diametrul orificiului [mm]: 12,7
• Tip disc frana: ventilat
• Grosime disc frana [mm]: 23,1
• Grosime minima [mm]: 21,0
• Procesare: continut ridicat de carbon
• Diametru interior [mm]: 143,4
• Diametru exterior [mm]: 280,0
• Numar gauri: 5
• Diametru de centrare [mm]: 69,0
• Asezare gauri O [mm]: 114,3
• Suprafata: acoperit (cu un strat protector)

Masini compatibile:

HYUNDAI
• i30 (GD) (2011-2020)
• i30 combi (GD) (2012-2017)
• i30 cupe (2013-2020)
• CRETA (2016-2021)
• i30 (PDE, PD, PDEN) (2016-2025)
• i30 combi (PDE) (2020-2025)
• i30 FASTBACK (PDE, PDEN) (2024-2025)
• i30 Kombi Van (GDE, GD) (2015-2020)
• i30 Hatchback Van (GDE) (2015-2020)

KIA
• CEE'D Sportswagon (JD) (2012-2018)
• CERATO KOUP II (TD) (2013-2014)
• CERATO KOUP III (YD) (2013-2018)
• CEE'D (JD) (2013-2018)
• PRO CEE'D (JD) (2013-2018)
• CERATO III hatchback (YD) (2014-2019)
• CERATO III limuzina (YD) (2014-2018)
• CERATO IV limuzina (BD, BDM) (2018-2023)
• CEED (CD) (2018-2020)
• CEED Sportswagon (CD) (2018-2020)
• CEE'D Combi Van (JD) (2015-2018)
• PRO CEE'D Hatchback Van (JD) (2015-2018)

Coduri echivalente:
AP: 25495V
BENDIX: BDS1394
BOSCH: 0986479A12, 0986479F36
BRECO: BV9105
BREMBO: 09.C249.11
CAR: 142.1867
CIFAM: 800-1377C
DELPHI: BG4565C, BG4745C
FERODO: DDF2187C
FTE: BS7548, BS7548B
GALFER: B1.G223-0123.1, G2123123
HELLA: 8DD355118-371, 8DD355118-381
HELLA PAGID: 8DD355118-371, 8DD355118-381
HERTH+BUSS JAKOPARTS: J3300551
HYUNDAI: 51712-A6000, 51712-M0000
JURID: 562986JC
KIA: 51712-A6000, 51712-A7000
LPR: H2039V
METELLI: 23-1377C
MINTEX: MDC2392C, MDC2393
NIPPARTS: N3300536
NK: 203538, 313538
PILENGA: V1822
REMSA: 61507.10
ROADHOUSE: 61507.10
TEXTAR: 92243103, 92243203
TRW: DF8056
ZIMMERMANN: 285.3527.20
sbs: 1815203538, 1815313538
