DISC FRANA ATE 24.0124-0118.1

DISC FRANA ATE - 24.0124-0118.1

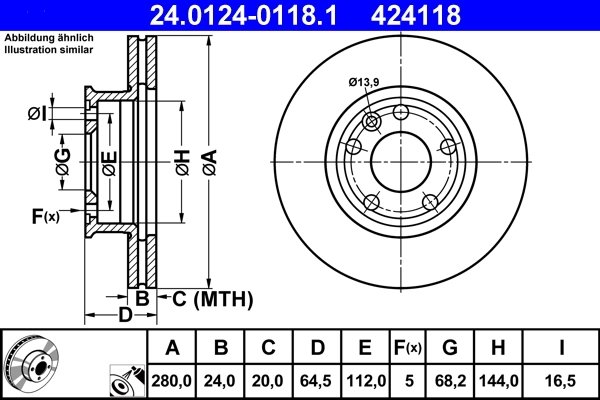

Caracteristici:

• Aprobare: E1 90R-02C0115/0241
• Inaltime [mm]: 64,5
• Diametrul orificiului [mm]: 16,5
• Tip disc frana: ventilat
• Grosime disc frana [mm]: 24,0
• Grosime minima [mm]: 20,0
• Procesare: aliat/cementat
• Diametru interior [mm]: 144,0
• Diametru exterior [mm]: 280,0
• Numar gauri: 5
• Diametru de centrare [mm]: 68,2
• Asezare gauri O [mm]: 112,0
• Suprafata: acoperit (cu un strat protector)

Masini compatibile:

VW
• TRANSPORTER T4 bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (1990-2003)
• TRANSPORTER T4 caroserie (70A, 70H, 7DA, 7DH) (1990-2003)
• TRANSPORTER T4 platou / sasiu (70E, 70L, 70M, 7DE, 7DL, 7DM) (1990-2003)

Coduri echivalente:
BARUM: BAR24118
BENDIX: 561610B
BOSCH: 0986478548
BRADI: 1.5822.2.4
BRECO: BS8053
BREMBO: 09.5566.10
CAR: 142.732
CIFAM: 800-437
DELPHI: BG2717, BG717
FEBI BILSTEIN: 08072
FERODO: DDF427, DDF427-1
FTE: BS3787
GALFER: B1.G224-0118.1, G2124118
GRAF: DF29437
HELLA: 8DD355102-631
HELLA PAGID: 8DD355102-631
JURID: 561610J, 561610JC
METELLI: 23-0437
MGA: D1237
MINTEX: MDC913
NK: 204733
PAGID: 53936
PEX: 14.0629
PILENGA: V153
QUINTON HAZELL: 6416.10, BDC3787, BSF3787
REMSA: 6416.10
ROADHOUSE: 6416.10
ROULUNDS BRAKING: D2412
SEBRO: 7109
TEXTAR: 92056000, 98200056001
TRW: DF1596
VAG: 701615301A, 701615301D
VALEO: 186315
ZIMMERMANN: 600.1605.00, 600.1605.50
