DISC FRANA ATE 24.0128-0226.1

DISC FRANA ATE - 24.0128-0226.1

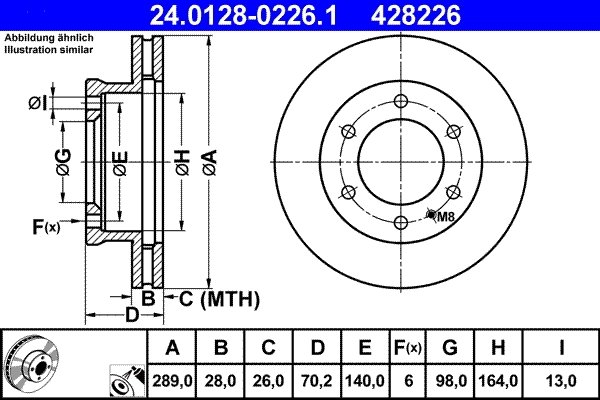

Caracteristici:

• Aprobare: E1 90R-02C0115/0136
• Inaltime [mm]: 70,2
• Diametrul orificiului [mm]: 13,0
• Tip disc frana: ventilat
• Grosime disc frana [mm]: 28,0
• Grosime minima [mm]: 26,0
• Procesare: aliat/cementat
• Diametru interior [mm]: 164,0
• Diametru exterior [mm]: 289,0
• Numar gauri: 6
• Diametru de centrare [mm]: 98,0
• Asezare gauri O [mm]: 140,0
• Suprafata: acoperit (cu un strat protector)

Masini compatibile:

FORD
• RANGER (ET) (2006-2012)
• RANGER (ER, EQ, R_) (1999-2006)

MAZDA
• B-SERIE (UN) (1999-2006)
• BT-50 pick-up (CD, UN) (2006-2015)
• BT-50 platou / sasiu (CD, UN) (2006-2011)

Coduri echivalente:
BOSCH: 0986479711
BREMBO: 09.B622.10
CAR: 142.1649
FORD: 1490412, 6M34-1027-DA
HELLA: 8DD355116-841
HELLA PAGID: 8DD355116-841
LPR: F1027V
MAZDA: UM51-33-251, UR61-33-251
MINTEX: MDC2217
NIPPARTS: N3303091
PAGID: 55230
PILENGA: V548
ROULUNDS BRAKING: WD01192, WD02008
TEXTAR: 92223000
TRW: DF6034S
