DISC FRANA ATE 24.0130-0115.1

DISC FRANA ATE - 24.0130-0115.1

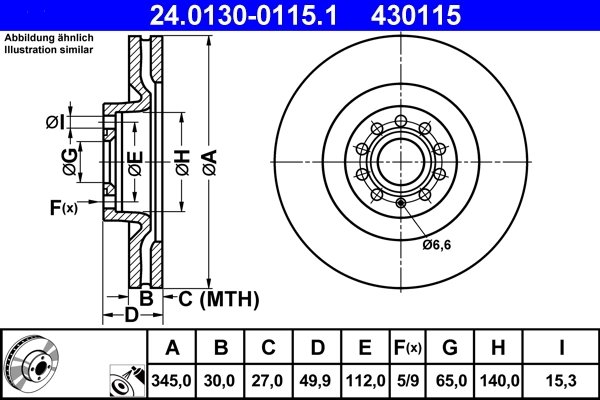

Caracteristici:

• Aprobare: E1 90R-02C0115/0563
• Inaltime [mm]: 49,9
• Diametrul orificiului [mm]: 15,3
• Tip disc frana: ventilat
• Grosime disc frana [mm]: 30,0
• Grosime minima [mm]: 27,0
• Procesare: continut ridicat de carbon
• Diametru interior [mm]: 140,0
• Diametru exterior [mm]: 345,0
• Numar gauri: 5
• Diametru de centrare [mm]: 65,0
• Asezare gauri O [mm]: 112,0
• Suprafata: acoperit (cu un strat protector)
• Numar gauri 2: 9

Masini compatibile:

SEAT
• LEON (1P1) (2005-2013)

VW
• GOLF VI (5K1) (2008-2013)
• PASSAT B6 Variant (3C5) (2005-2011)
• GOLF VI Cabriolet (517) (2011-2016)
• EOS (1F7, 1F8) (2006-2015)
• SCIROCCO III (137, 138) (2008-2017)
• PASSAT CC B6 (357) (2008-2012)
• GOLF V (1K1) (2003-2009)
• PASSAT B6 (3C2) (2005-2010)
• GOLF IV (9B3) (2007-2014)
• SCIROCCO Van (137) (2008-2014)
• GOLF VI Van (5K1) (2008-2012)
• GOLF VAN VI Variant (AJ5) (2009-2014)
• GOLF Caseta/ Hatchback (1K1) (2003-2006)

SKODA
• SUPERB II (3T4) (2008-2015)
• SUPERB II combi (3T5) (2009-2015)

AUDI
• A3 (8P1) (2003-2012)
• A3 Sportback (8PA) (2004-2013)

Coduri echivalente:
BENDIX: 562239B, BDS1407HC
BOSCH: 0986479204, 0986479B87
BREMBO: 09.A201.10, 09.A201.11, 09.C892.11
CAR: 142.1025
CIFAM: 800-851
DELPHI: BG9952
FEBI BILSTEIN: 34254
FERODO: DDF1504, DDF1504-1, DDF1504C-1
FTE: BS7081
GALFER: B1.G230-0115.1, G2130115
GRAF: DF29851
HELLA: 8DD355109-531, 8DD355109-541, 8DD355127-981
HELLA PAGID: 8DD355109-531, 8DD355109-541, 8DD355127-981
JURID: 562239J
METELLI: 23-0851
MINTEX: MDC1718
PAGID: 54206
SEAT: 1K0615301AR, 1K0615301M
SKODA: 1K0615301AR, 1K0615301M
TEXTAR: 92120600, 92120603, 92120605, 98200120601, 98200120601PRO
TRW: DF4350S
VAG: 1K0615301AB, 1K0615301AR, 1K0615301M
VALEO: 197197
ZIMMERMANN: 100.3301.00, 100.3301.20, 100.3301.52
