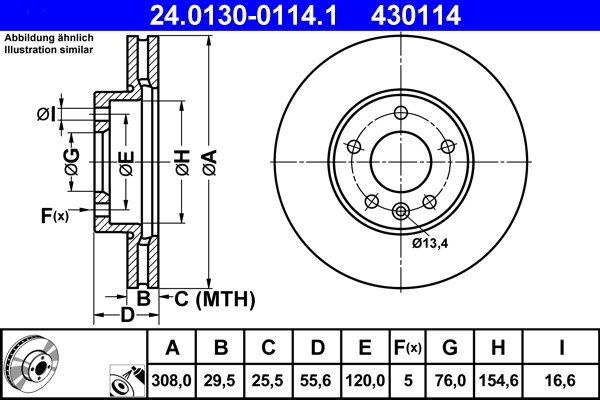

DISC FRANA ATE 24.0130-0114.1

DISC FRANA ATE - 24.0130-0114.1

Caracteristici:

• Aprobare: E1 90R-02C0115/0880
• Inaltime [mm]: 55,6
• Diametrul orificiului [mm]: 16,6
• Tip disc frana: ventilat
• Grosime disc frana [mm]: 29,5
• Grosime minima [mm]: 25,5
• Procesare: continut ridicat de carbon
• Diametru interior [mm]: 154,6
• Diametru exterior [mm]: 308,0
• Numar gauri: 5
• Diametru de centrare [mm]: 76,0
• Asezare gauri O [mm]: 120,0
• Suprafata: acoperit (cu un strat protector)

Masini compatibile:

VW
• TOUAREG (7LA, 7L6, 7L7) (2002-2010)
• TRANSPORTER T5 bus (7HB, 7HJ, 7EB, 7EJ) (2003-2015)
• MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) (2003-2015)
• TRANSPORTER T5 platou / sasiu (7JD, 7JE, 7JL, 7JY, 7JZ, 7FD, (2003-2015)
• TRANSPORTER T5 caroserie (7HA, 7HH, 7EA, 7EH) (2003-2015)
• TRANSPORTER T6 / CARAVELLE T6 bus (SGB, SGJ, SHB, SHJ) (2015-2024)
• TRANSPORTER T6 caroserie (SGA, SGH, SHA, SHH) (2015-2024)
• TRANSPORTER T6 platou / sasiu (SFD, SFE, SFL, SFZ, SJD, SJE, (2015-2024)
• MULTIVAN T6 (SGF, SGM, SGN, SHM, SHN) (2015-2024)
• CALIFORNIA T6 Camper (SGC, SGG, SHC) (2015-2024)
• CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) (2007-2015)

Coduri echivalente:
BENDIX: 562234B
BOSCH: 0986479211, 0986479B88
BREMBO: 09.9442.11, 09.9442.14, 09.D211.11
CAR: 142.062
CIFAM: 800-773
DELPHI: BG9891
FEBI BILSTEIN: 28504
FERODO: DDF1253, DDF1253C-1
FTE: BS5424
GALFER: B1.G230-0114.1, G2130114
GRAF: DF29773
HELLA: 8DD355109-651, 8DD355109-661
HELLA PAGID: 8DD355109-651, 8DD355109-661
JURID: 562234J
METELLI: 23-0773
MINTEX: MDC1704, MDC2729
PAGID: 54212, 54212PRO
PEX: 14.0731
QUINTON HAZELL: 6708.10, BDC5424, BSF5424
REMSA: 6708.10
ROADHOUSE: 6708.10
TEXTAR: 92121200, 92121203, 92279505
TRW: DF4308BPS, DF4308S
VAG: 7E0615301D, 7H0615301D, JZW615301E
VALEO: 186756, 297756
ZIMMERMANN: 600.3223.00
