DISC FRANA ATE 24.0322-0172.1

DISC FRANA ATE - 24.0322-0172.1

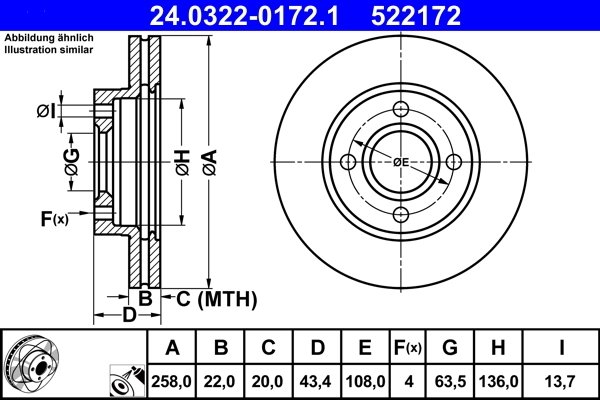

Caracteristici:

• Inaltime [mm]: 43,4
• Diametrul orificiului [mm]: 13,7
• Tip disc frana: ventilat
• Grosime disc frana [mm]: 22,0
• Grosime minima [mm]: 20,0
• Diametru interior [mm]: 136,0
• Diametru exterior [mm]: 258,0
• Numar gauri: 4
• Diametru de centrare [mm]: 63,5
• Asezare gauri O [mm]: 108,0
• Suprafata: acoperit (cu un strat protector)

Masini compatibile:

FORD
• FIESTA IV (JA_, JB_) (1995-2002)
• PUMA (EC_) (1997-2002)
• FOCUS I (DAW, DBW) (1998-2004)
• FOCUS I limuzina (DFW) (1999-2005)
• FOCUS I Turnier (DNW) (1999-2004)
• FIESTA limuzina (2002-2013)
• FIESTA V (JH_, JD_) (2001-2008)
• FUSION (JU_) (2002-2012)
• STREET KA (RL2) (2003-2005)
• KA (RB_) (2001-2008)
• FIESTA Autoutilitara/limuzina spatioasa (J5_, J3_) (1996-2003)
• FIESTA Caseta/ Hatchback (JV_) (1998-2003)
• FIESTA V Van (2003-2010)

MAZDA
• 121 III (JASM, JBSM) (1996-2003)
• 2 (DY) (2003-2007)

Coduri echivalente:
BENDIX: 562078B
BOSCH: 0986478892
BRADI: 1.1752.2.4
BREMBO: 09.7806.10, 09.7806.11, 09.7806.14, 09.7806.1X, 09.7806.75, FD.096.000, FS.096.000
CAR: 142.242
CIFAM: 800-476
DELPHI: BG3359
FEBI BILSTEIN: 12578
FERODO: DDF1072, DDF1072C, DRF1072
FORD: 1148202, 1320585, 1323620, 1373771, 1522230, 1808479, 3555344, 3573537, 4077455, 98AB-1125-BE, 98AG-1125-EB, 98AX-1125-B1F, 98AX-1125-BF
FTE: BS4727
GRAF: DF29476
HELLA: 8DD355106-421, 8DD355106-431
HELLA PAGID: 8DD355106-421, 8DD355106-431
HERTH+BUSS JAKOPARTS: J3303085
JURID: 562078J
METELLI: 23-0476
MGA: D1276
MINTEX: MDC1030
NIPPARTS: J3303085
NK: 202549, 312549
PAGID: 51040, 51040PRO
PEX: 14.0210, 14.0210N
PILENGA: V274
QUINTON HAZELL: 6575.10, BDC4727, BSF4727
REMSA: 6575.10
ROADHOUSE: 6575.10
ROULUNDS BRAKING: D2259
TEXTAR: 92096200, 92096203, 98200096201, 98200096201PRO
TRW: DF4036, DF4036BP
VALEO: 186560, 297560
ZIMMERMANN: 250.1343.00, 250.1343.20, 250.1343.50
sbs: 1815312549
