DISC FRANA ATE 24.0325-0145.1

DISC FRANA ATE - 24.0325-0145.1

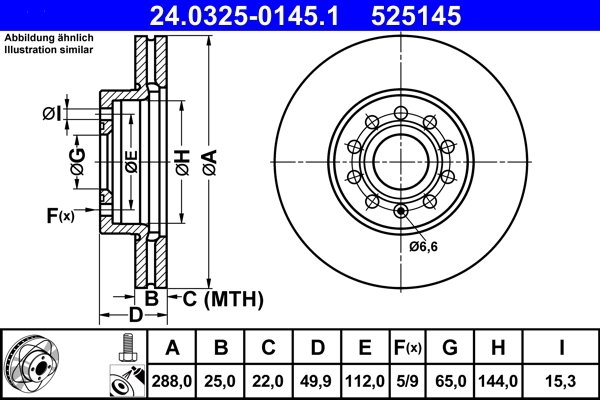

Caracteristici:

• Aprobare: E1 90R-02C0858/1210
• Inaltime [mm]: 49,9
• Diametrul orificiului [mm]: 15,3
• Tip disc frana: ventilat
• Grosime disc frana [mm]: 25,0
• Grosime minima [mm]: 22,0
• Procesare: continut ridicat de carbon
• Diametru interior [mm]: 144,0
• Diametru exterior [mm]: 288,0
• Numar gauri: 5
• Diametru de centrare [mm]: 65,0
• Asezare gauri O [mm]: 112,0
• Suprafata: acoperit (cu un strat protector)
• Articol completare/Info suplimentar 2: cu suruburi
• Numar gauri 2: 9

Masini compatibile:

SEAT
• LEON (1P1) (2005-2013)
• ALTEA (5P1) (2004-2015)
• TOLEDO III (5P2) (2004-2009)
• LEON ST (5F8) (2012-2020)
• ALTEA XL (5P5, 5P8) (2006-2015)
• LEON (5F1) (2012-2020)
• LEON SC (5F5) (2013-2018)

VW
• TOURAN (1T3) (2010-2015)
• GOLF PLUS V (5M1, 521) (2004-2013)
• GOLF VI (5K1) (2008-2013)
• JETTA IV (162, 163, AV3, AV2) (2010-2017)
• GOLF VI Variant (AJ5) (2009-2013)
• GOLF VI Cabriolet (517) (2011-2016)
• EOS (1F7, 1F8) (2006-2015)
• CADDY III microbus (2KB, 2KJ, 2CB, 2CJ) (2004-2015)
• JETTA III (1K2) (2004-2010)
• SCIROCCO III (137, 138) (2008-2017)
• BEETLE (5C1, 5C2) (2011-2019)
• TOURAN (1T1, 1T2) (2003-2010)
• GOLF V (1K1) (2003-2009)
• GOLF V Variant (1K5) (2007-2009)
• GOLF VII Variant (BA5, BV5) (2013-2021)
• GOLF VII (5G1, BQ1, BE1, BE2) (2012-2021)
• BEETLE Cabriolet (5C7, 5C8) (2011-2019)
• GOLF SPORTSVAN VII (AM1, AN1) (2014-2020)
• GOLF ALLTRACK VII Variant (BA5, BV5) (2014-2020)
• CADDY IV microbus (SAB, SAJ) (2015-2025)
• CADDY ALLTRACK IV microbus (SAB) (2015-2020)
• JETTA VII limuzina (BU3, BU4) (2017-2022)
• CADDY III Autoutilitara/limuzina spatioasa (2KA, 2KH, 2CA, 2 (2004-2015)
• CADDY IV Autoutilitara/limuzina spatioasa (SAA, SAH) (2015-2025)
• CADDY ALLTRACK IV Autoutilitara/limuzina spatioasa (SAA) (2015-2020)
• CADDY Autoutilitara/limuzina spatioasa (6K9, 9E7, 9E9) (1998-2009)
• TOURAN VAN (1T3) (2010-2015)
• TOURAN VAN (1T1, 1T2) (2003-2010)
• GOLF Caseta/ Hatchback (1K1) (2003-2006)

SKODA
• OCTAVIA II Combi (1Z5) (2004-2013)
• OCTAVIA II (1Z3) (2004-2013)
• SUPERB II (3T4) (2008-2015)
• SUPERB II combi (3T5) (2009-2015)
• YETI (5L) (2009-2017)
• SUPERB I (3U4) (2001-2008)
• OCTAVIA III (5E3, NL3, NR3) (2012-2020)
• OCTAVIA III Combi (5E5, 5E6) (2012-2020)

AUDI
• A3 (8P1) (2003-2012)
• A3 Sportback (8PA) (2004-2013)
• A3 Cabriolet (8P7) (2008-2013)
• A3 Limousine (8VS, 8VM) (2013-2020)
• A3 (8V1, 8VK) (2012-2020)
• A3 Sportback (8VA, 8VF) (2012-2020)
• A3 Cabriolet (8V7, 8VE) (2013-2020)

Coduri echivalente:
BENDIX: 562235B
BOSCH: 0986479088, 0986479939
BREMBO: 09.9145.10, 09.9145.11, 09.9145.14, 09.9145.1X, 09.9145.75, FD.155.000
CAR: 142.1021
CIFAM: 800-734
DELPHI: BG3833
FEBI BILSTEIN: 22902
FERODO: DDF1218, DDF1218C, DDF1218C-1
FTE: BS5418
GRAF: DF29734
HELLA: 8DD355109-571, 8DD355109-581
HELLA PAGID: 8DD355109-571, 8DD355109-581
JURID: 562235J
LPR: A1002V
METELLI: 23-0734
MGA: D1471
MINTEX: MDC1638, MDC1638C
NK: 204788
PAGID: 54208, 54208PRO
PEX: 14.0749
QUINTON HAZELL: 6648.10
REMSA: 6648.10
ROADHOUSE: 6648.10
SEAT: 1K0615301T, 5Q0615301H, JZW615301J
SKODA: 1K0615301T, 5Q0615301H, JZW615301J
TEXTAR: 92120800, 92120803, 92120805, 98200120801, 98200120801PRO
TRW: DF4295
VAG: 1K0615301K, 1K0615301T, 5Q0615301H, JZW615301J
VALEO: 186755, 197325
ZIMMERMANN: 600.3221.00, 600.3221.20, 600.3221.50, 600.3221.52
