TAMBUR FRANA ATE 24.0222-8018.1

TAMBUR FRANA ATE - 24.0222-8018.1

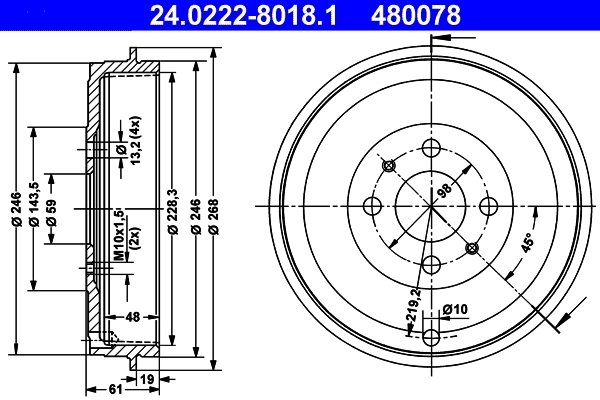

Caracteristici:

• Aprobare: E1 90R-02D0324/1950
• Diametrul orificiului [mm]: 13,2
• Diametru tambur de frana exterior [mm]: 268,0
• cota max. desfacere tambur de frana [mm]: 230,0
• Inaltime tambur de frana interior [mm]: 48,0
• Inaltime tambur de frana total [mm]: 61,0
• Numar gauri: 4
• Asezare gauri O [mm]: 98,0
• Dimanetru suport [mm]: 59,0
• Diametru tambur de frana interior [mm]: 228

Masini compatibile:

FIAT
• TIPO (160_) (1988-1995)
• TEMPRA (159_) (1990-1996)
• TEMPRA S.W. (159_) (1990-1996)
• QUBO (225_) (2008-2020)
• MAREA Weekend (185_) (1996-2003)
• PALIO (178_, 171_, 371_) (1996-2012)
• PALIO Weekend (178_, 173_, 373_, 374_, 171_) (1996-2012)
• IDEA (350_) (2004-2012)
• MULTIPLA (186_) (1999-2010)
• LINEA (323_, 110_) (2006-2014)
• STRADA pick-up (178_, 278_) (1999-2015)
• FIORINO Pick up (146_) (1988-2001)
• DOBLO microbus (119_, 223_) (2001-2010)
• ALBEA (178_, 172_, 372_) (2001-2009)
• FIORINO microbus (225_) (2007-2021)
• FIORINO Autoutilitara/limuzina spatioasa (225_) (2007-2020)
• FIORINO Autoutilitara/limuzina spatioasa (146_) (1988-2001)
• DOBLO Autoutilitara/limuzina spatioasa (223_) (2001-2011)
• IDEA Van (350_) (2004-2010)
• MULTIPLA VAN (186_) (2001-2010)

ALFA ROMEO
• 145 (930_) (1994-1999)
• 146 (930_) (1994-1999)

CITROEN
• NEMO microbus (2009-2020)
• NEMO Autoutilitara/limuzina spatioasa (AA_) (2008-2021)

PEUGEOT
• BIPPER TEPEE (2008-2020)
• BIPPER (AA_) (2008-2020)

LANCIA
• MUSA (350_) (2004-2012)

Coduri echivalente:
BENDIX: 329006B, 329022B, 329213B
BOSCH: 0986477088, 0986477212
BREMBO: 14.5102.10, 14.7127.20
CAR: 433.063
CIFAM: 700-009, 700-022, 700-035
CITROEN: 1608945480, 1617329080, 424755, 424758
DELPHI: BF201, BF379
FIAT: 51816526, 52015299, 60810025, 60814839, 7569600, 7769850
FTE: BT146
HELLA: 8DT355300-071, 8DT355301-091
HELLA PAGID: 8DT355300-071, 8DT355301-091
JURID: 329022J, 329213J
LPR: 7D0667
METELLI: 18-0009, 18-0022, 18-0035
MGA: T7449, T7457, T7472, TR7457
MINTEX: MBD219, MBD319
NK: 251001, 251913, 252310
OMC: 100109, 100131, 100182, 100724
PAGID: 60904, 61343
PEUGEOT: 1608945480, 1617329080, 424755, 424758
PEX: 15.0011, 15.0018, 15.0176
PILENGA: 6230
QUINTON HAZELL: 7056.00, BDR146, BTF146
REMSA: 7056.00
ROADHOUSE: 7056.00
TEXTAR: 94014000, 94034000, 98100014001, 98100034001
TRW: DB4017, DB4210, DB4387
VALEO: 237036, 237037
ZIMMERMANN: 230.1912.00
sbs: 1825251913
